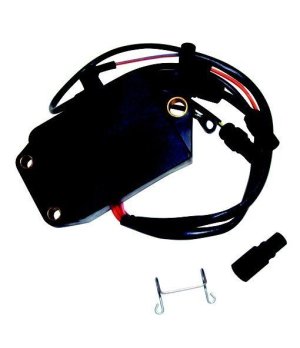

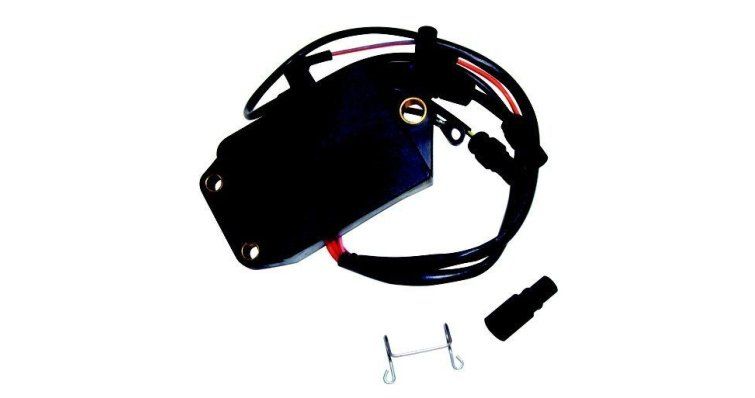

Black Box 583773 0584028

Function and Technical Context

The black box or power pack is the electronic ignition control module for Johnson and Evinrude outboard engines in the OMC range. Its function is to manage and distribute firing signals to the ignition modules or coils of each cylinder, coordinating with precision the exact moment of spark based on signals from the crankshaft position sensor. It operates within the CDI (Capacitor Discharge Ignition) electronic ignition system, being the central component that determines the ignition advance curve and ensures efficient combustion across the full rpm range. If this unit fails or degrades, the engine may experience ignition misfires in one or more cylinders, severe power loss, or even inability to start, since without the correct firing signal the combustion cycle is interrupted.

When to Replace This Part?

The most common symptoms of a faulty power pack include: difficult or impossible starting, jerking and intermittent cutouts at certain rpm levels, irregular operation in one or more cylinders (engine "dancing"), or complete ignition failure with no apparent cause in the fuel system. Being an electronic component subjected to continuous vibration, moisture, and heat, it should be inspected at each seasonal maintenance check, verifying the absence of corrosion on connectors and the integrity of the housing. Preventively replacing the ignition box at the first signs of trouble avoids being stranded offshore and reduces the risk of secondary damage to associated coils or power modules.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
