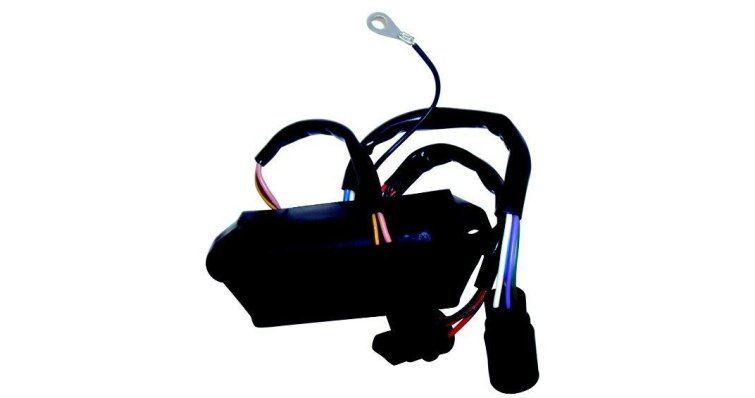

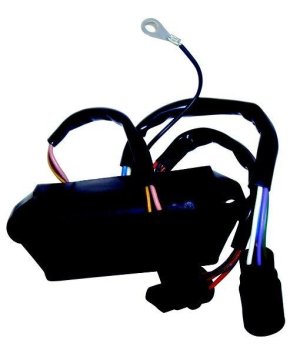

Black Box 582138 0582642

Function and technical context

The ignition box or power pack is the central component of the ignition system in two-stroke outboard engines, responsible for generating and distributing high-voltage electrical pulses that activate the coils and ultimately produce the spark in each cylinder at the precise moment of the cycle. This electronic unit works in close coordination with the position sensor, the magnetic flywheel, and the overspeed prevention module, managing ignition advance based on engine RPM. A failure in this box results directly in difficult starting, irregular operation at different speeds, or complete loss of ignition, leaving the vessel without propulsion. References 582138, 0582556, and 582642 identify this same unit in the spare parts catalog for Johnson and Evinrude engines in the medium and high horsepower range.

When to replace this part?

The most common symptoms of a faulty ignition box include intermittent ignition failures (especially when warming up the engine), sudden power loss at full throttle, jerking or sudden cuts during navigation, and in severe cases, complete inability to start despite having a good battery and fuel supply. Unlike mechanical wear components, the black box has no fixed replacement interval in hours, but should be inspected at any unexplained electrical symptom and always before starting the season if the engine has been stored in damp conditions. Replacing it preventively at the first signs avoids being stranded and facing emergency towing at a cost far exceeding the cost of the part itself.

Compatible Johnson/Evinrude Engines

Equivalent manufacturer references
