Black box for OMC outboard motor control systems. Compatible with Johnson and Evinrude 40 and 50 HP in multiple configurations: BE, BJ, E, HE, HJ, J, RJ, SE, SJ, TE, TJ, VE and VJ.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

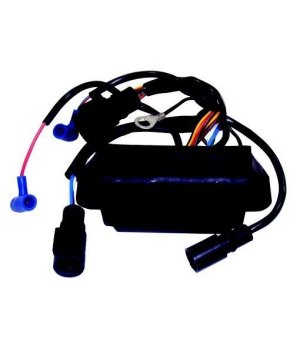

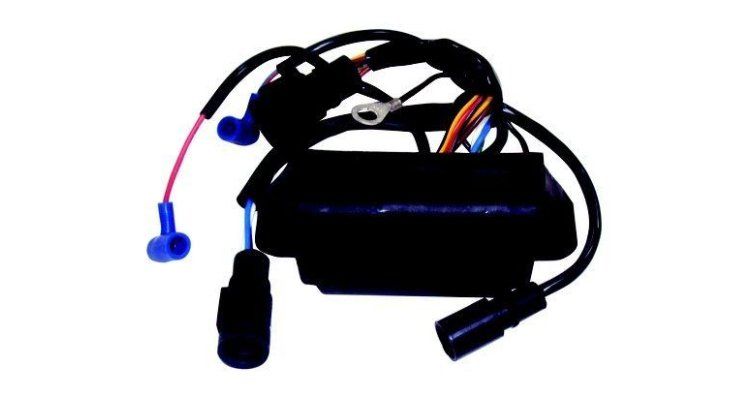

Black Box 175316 0175316
REC0175316
€236.33
Tax included
Black box for OMC outboard motor control systems. Compatible with Johnson and Evinrude 40 and 50 HP in multiple configurations: BE, BJ, E, HE, HJ, J, RJ, SE, SJ, TE, TJ, VE and VJ.
Description
Function and Technical Context
The black box is the control module of the electronic ignition system in OMC outboard engines, acting as the central unit that manages the timing and spark generation in each cylinder. Integrated into the ignition circuit, it receives signals from the stator and position sensors to precisely calculate the optimal ignition timing. A failure in this component causes rough starting, severe loss of power, unexpected engine shutdowns or complete inability to start. Its correct operation is essential to maintain the performance and reliability of the propulsion system, especially in demanding navigation conditions.
When to Replace This Part?
The most common symptoms of failure in the electronic ignition module include jerking or intermittent cuts at different engine speeds, difficulty starting in cold or hot conditions, absent spark in one or several cylinders and engine that stops suddenly without prior warning. Since it is an electronic component with no moving parts, it does not have a fixed replacement interval in hours, although it is advisable to inspect it whenever there is any ignition anomaly and verify it at each seasonal maintenance. Replacing the defective ignition module preventively, before a complete failure on the water, avoids risk situations and higher-cost emergency repairs.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| BE40 | BE40EECR 1998, BE40EEDS 1996, BE40EEUC 1997, BE40ELECR 1998, BE40ELEDS 1996, BE40ELEUC 1997, BE40TLECR 1998, BE40TLEDS 1996, BE40TLEUC 1997 |
| BE50 | BE50BEEDS 1996, BE50BELEDS 1996, BE50ESECC 1998, BE50RLECR 1998, BE50RLEUC 1997, BE50TLECR 1998, BE50TLEDS 1996, BE50TLEUC 1997, BE50TSLECC 1998, BE50TSLEUS 1997 |
| BJ40 | BJ40EECR 1998, BJ40EEDS 1996, BJ40EEEA 1999, BJ40EEUC 1997, BJ40ELECR 1998, BJ40ELEDS 1996, BJ40ELEEA 1999, BJ40ELEUC 1997, BJ40ELSIF elec start, 20 in shaft, n/a usa 2001, BJ40ELSSM Elec. Start, 20 IN. shaft, N/A USA 2000, BJ40ESIF elec start, 15 in shaft, n/a usa 2001, BJ40ESSM Elec. Start, 15 IN. shaft, N/A USA 2000, BJ40PLEEA 1999, BJ40PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ40PLSSM Elec. Start, TNT, 15 IN. shaft, N/A USA 2000, BJ40TLECR 1998, BJ40TLEDS 1996, BJ40TLEUC 1997 |
| BJ50 | BJ50BEEDS 1996, BJ50BELEDS 1996, BJ50EEER 1999, BJ50ELEER 1999, BJ50ELSIF elec start, 20 in shaft, n/a usa 2001, BJ50ELSSA Elec. Start, 20 IN. shaft, N/A USA 2000, BJ50ESECC 1998, BJ50ESIF elec start, 15 in shaft, n/a usa 2001, BJ50ESSA Elec Start, 15 IN. shaft, N/A USA 2000, BJ50PLEEA 1999, BJ50PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ50PLSSM Elec. Start, TNT, Tiller, 20 IN. shaft, N/A USA 2000, BJ50RLECR 1998, BJ50RLEEA 1999, BJ50RLEUC 1997, BJ50RLSIF elec start, 20 in shaft, n/a usa 2001, BJ50RLSSM Rope Start, 20 IN. shaft, N/A USA 2000, BJ50TLECR 1998, BJ50TLEDS 1996, BJ50TLEUC 1997, BJ50TSLECC 1998, BJ50TSLEUS 1997 |
| E40 | E40EENJ 1992, E40EENM 1992, E40EEOD 1995, E40EERE 1994, E40EETB 1993, E40ELECR 1998, E40ELEDS 1996, E40ELENJ 1992, E40ELENM 1992, E40ELEOD 1995, E40ELERE 1994, E40ELETB 1993, E40ELEUC 1997, E40RECR 1998, E40REDS 1996, E40RENM 1992, E40REOD 1995, E40RERE 1994, E40RETB 1993, E40REUC 1997, E40RLECR 1998, E40RLEDS 1996, E40RLENM 1992, E40RLEOD 1995, E40RLERE 1994, E40RLETB 1993, E40RLEUC 1997, E40TEECR 1998, E40TEEDS 1996, E40TEENJ 1992, E40TEENM 1992, E40TEEOD 1995, E40TEERE 1994, E40TEETB 1993, E40TEEUC 1997, E40TELECR 1998, E40TELEDS 1996, E40TELENJ 1992, E40TELENM 1992, E40TELEOD 1995, E40TELERE 1994, E40TELETB 1993, E40TELEUC 1997, E40TLECR 1998, E40TLEDS 1996, E40TLENJ 1992, E40TLENM 1992, E40TLEOD 1995, E40TLERE 1994, E40TLETB 1993, E40TLETF 1993, E40TLEUC 1997, E40TTLECR 1998, E40TTLEDS 1996, E40TTLENM 1992, E40TTLEOD 1995, E40TTLERE 1994, E40TTLETB 1993, E40TTLETF 1993, E40TTLEUC 1997 |
| E50 | E50BEENJ 1992, E50BEENM 1992, E50BEEOD 1995, E50BEERE 1994, E50BEETB 1993, E50BELENJ 1992, E50BELENM 1992, E50BELEOD 1995, E50BELERE 1994, E50BELETB 1993, E50ESLECC 1998, E50ESLEUR 1997, E50JEDS 1996, E50JENJ 1992, E50JENM 1992, E50JEOD 1995, E50JERE 1994, E50JETB 1993, E50JEUC 1997, E50TELENM 1992, E50TELEOD 1995, E50TELERE 1994, E50TELETB 1993, E50TLECR 1998, E50TLEDS 1996, E50TLENJ 1992, E50TLENM 1992, E50TLEOD 1995, E50TLERE 1994, E50TLETB 1993, E50TLETF 1993, E50TLEUC 1997, E50TSLECC 1998, E50TSLEUS 1997 |
| HE40 | HE40REDS 1996, HE40REUC 1997, HE40RLEDS 1996, HE40RLEUC 1997 |
| HJ40 | HJ40REDS 1996, HJ40REUC 1997, HJ40RLEDS 1996, HJ40RLEUC 1997 |
| J40 | J40EENJ 1992, J40EENM 1992, J40EEOD 1995, J40EERE 1994, J40EETB 1993, J40ELECR 1998, J40ELEDS 1996, J40ELENJ 1992, J40ELENM 1992, J40ELEOD 1995, J40ELERE 1994, J40ELETB 1993, J40ELEUC 1997, J40PLEEA 1999, J40PLSIF elec start, TNT, 20 in shaft 2001, J40PLSNF Oil Injection, 20 in., White, Remote, Elec, TNT, 2002, J40PLSOC, J40PLSRS, J40PLSSM Elec. Start, TNT, 20 IN. shaft 2000, J40PLSTD, J40RECR 1998, J40REDS 1996, J40REEA 1999, J40RENM 1992, J40REOD 1995, J40RERE 1994, J40RETB 1993, J40REUC 1997, J40RLECR 1998, J40RLEDS 1996, J40RLEEA 1999, J40RLENM 1992, J40RLEOD 1995, J40RLERE 1994, J40RLETB 1993, J40RLEUC 1997, J40RLSIF rope start, 20 in shaft 2001, J40RLSSM Rope Start, Tiller, 20 IN. shaft 2000, J40RSIF rope start, 15 in shaft 2001, J40RSSM Rope Start, Tiller, 15 IN. shaft 2000, J40TEECR 1998, J40TEEDS 1996, J40TEENJ 1992, J40TEENM 1992, J40TEEOD 1995, J40TEERE 1994, J40TEETB 1993, J40TEEUC 1997, J40TELECR 1998, J40TELEDS 1996, J40TELENJ 1992, J40TELENM 1992, J40TELEOD 1995, J40TELERE 1994, J40TELETB 1993, J40TELEUC 1997, J40TLECR 1998, J40TLEDS 1996, J40TLENJ 1992, J40TLENM 1992, J40TLEOD 1995, J40TLERE 1994, J40TLETB 1993, J40TLETF 1993, J40TLEUC 1997, J40TPLEEA 1999, J40TPLSIF elec start, tiller, TNT, 20 in shaft 2001, J40TPLSSM Elec. Start, TNT, Tiller, 20 IN. shaft 2000, J40TTLECR 1998, J40TTLEDS 1996, J40TTLENM 1992, J40TTLEOD 1995, J40TTLERE 1994, J40TTLETB 1993, J40TTLETF 1993, J40TTLEUC 1997 |
| J50 | J50BEENJ 1992, J50BEENM 1992, J50BEEOD 1995, J50BEERE 1994, J50BEETB 1993, J50BELENJ 1992, J50BELENM 1992, J50BELEOD 1995, J50BELERE 1994, J50BELETB 1993, J50ELEER 1999, J50ELSIF elec start, 20 in shaft 2001, J50ELSSA Elec. Start, Tiller, 15 IN. shaft 2000, J50ESLECC 1998, J50ESLEUR 1997, J50JEDS 1996, J50JENJ 1992, J50JENM 1992, J50JEOD 1995, J50JERE 1994, J50JETB 1993, J50JEUC 1997, J50PLEEA 1999, J50PLSIF elec start, TNT, 20 in shaft 2001, J50PLSNF Oil Injection, 20 in., White, Remote, Elec, TNT, 2002, J50PLSOC, J50PLSRS, J50PLSSM Elec. Start, TNT, Tiller, 20 IN. shaft 2000, J50PLSTD, J50TELENM 1992, J50TELEOD 1995, J50TELERE 1994, J50TELETB 1993, J50TLECR 1998, J50TLEDS 1996, J50TLENJ 1992, J50TLENM 1992, J50TLEOD 1995, J50TLERE 1994, J50TLETB 1993, J50TLETF 1993, J50TLEUC 1997, J50TSLECC 1998, J50TSLEUS 1997 |
| Otros | ELECTRICAL 1992, ELECTRICAL 1993, ELECTRICAL 1994, ELECTRICAL 1995 |
| RJ50 | RJ50ELSIF elec start, TNT, 20 in shaft 2001 |
| SE50 | SE50TLEDS 1996 |
| SJ40 | SJ40EEDS 1996, SJ40REDS 1996, SJ40RLEDS 1996 |
| TE40 | TE40ELENJ 1992, TE40ELENM 1992, TE40ELETB 1993 |
| TJ40 | TJ40ELENJ 1992, TJ40ELENM 1992, TJ40ELETB 1993 |
| VE40 | VE40EENJ 1992, VE40EENM 1992, VE40EETB 1993, VE40ELENJ 1992, VE40ELENM 1992, VE40ELETB 1993, VE40TELENJ 1992, VE40TELENM 1992, VE40TELETB 1993, VE40TLENJ 1992, VE40TLENM 1992, VE40TLETB 1993, VE40TLETF 1993 |
| VE50 | VE50BEENJ 1992, VE50BEENM 1992, VE50BEETB 1993, VE50BELENJ 1992, VE50BELENM 1992, VE50BELETB 1993, VE50TELENM 1992, VE50TLENJ 1992, VE50TLENM 1992, VE50TLETB 1993, VE50TLETF 1993 |
| VJ40 | VJ40EENJ 1992, VJ40EENM 1992, VJ40EETB 1993, VJ40ELENJ 1992, VJ40ELENM 1992, VJ40ELETB 1993, VJ40TELENJ 1992, VJ40TELENM 1992, VJ40TELETB 1993, VJ40TLENJ 1992, VJ40TLENM 1992, VJ40TLETB 1993, VJ40TLETF 1993 |
| VJ50 | VJ50BEENJ 1992, VJ50BEENM 1992, VJ50BEETB 1993, VJ50BELENJ 1992, VJ50BELENM 1992, VJ50BELETB 1993, VJ50TELENM 1992, VJ50TLENJ 1992, VJ50TLENM 1992, VJ50TLETB 1993, VJ50TLETF 1993 |
| X50 | X50ESLECC 1998 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 0585261, 175316, 585261, 585262, 0175316 ✓ (actual) |
Related Johnson/Evinrude Spare Parts
If you are maintaining or repairing your Johnson/Evinrude engine, these spare parts might also interest you:
- Bobina 583740 0583740Category: Coils Johnson Evinrude
- Junta Culata 335359Category: 2-stroke Cylinder Head Gaskets Johnson Evinrude
- Tornillo con Reten 8M0058389Category: J/E Lower Drive 4-8 HP (1980+)
- Kit Juntas Carburador 396701Category: Carburettor Kits Johnson Evinrude
- Chaveta 334897Category: J/E Lower Drive 40-50 HP (1989-05)
