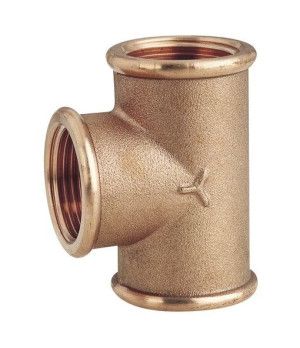

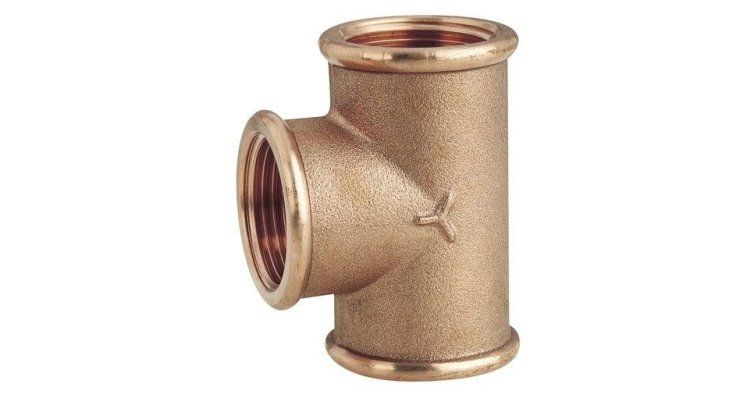

F/F/F Pipe Tee Naval Bronze 1"

Function and technical context

This naval bronze tee in female/female/female configuration allows branching or distributing fluid circuits on board, connecting three sections of pipe or hose into a single watertight joint. It is commonly used in seawater cooling systems, bilge circuits, fuel distribution or nautical plumbing installations where it is necessary to bifurcate the flow into two branches while maintaining the same female thread in the three outlets. Naval bronze is the reference material for this type of fittings in marine environments due to its high resistance to galvanic corrosion and its compatibility with salt water, fresh water and coolant mixtures. A poor or deteriorated connection at a branch point can cause internal leaks, loss of pressure in the circuit and, in cooling systems, overheating of the engine with the risk of serious damage.

When to replace this part?

The most common symptoms that indicate that a bronze T-fitting should be checked or replaced are: presence of greenish or whitish deposits around the joint (indicative of electrolysis or slow leakage), persistent moisture marks in the coupling area, and difficulty in achieving a tight tightening due to thread wear from repeated assembly and disassembly cycles. It is recommended to inspect all naval bronze fittings and connections at the beginning of each navigation season, coinciding with the general maintenance of the cooling system or the circuit in which it is installed. Preventively replacing a damaged T-fitting before launching the boat avoids emergency interventions in the water and possible liquid ingress into sensitive compartments of the hull.
