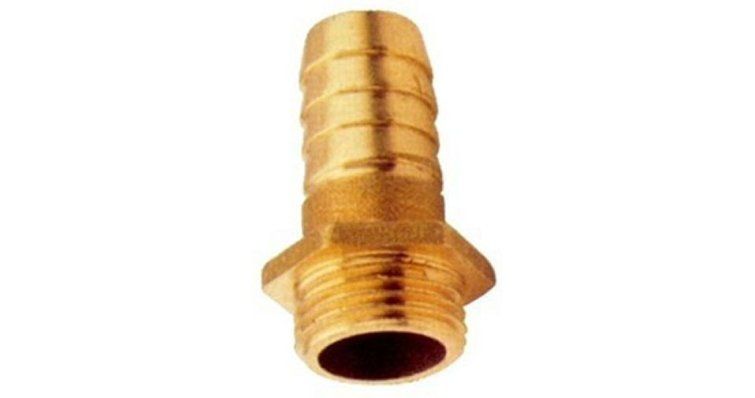

Male Hose Adapter Brass 1 1/4" - 32 mm

Function and technical context

This male brass fitting acts as a transition connector between a threaded pipe and a 32 mm flexible hose, being a fundamental component in seawater cooling circuits, wet exhaust systems and fuel lines or hull emptying on motor boats. The 32 mm rubber nipple allows the hose to be fixed with a clamp, guaranteeing a watertight and pressure-resistant connection of the circuit. Being made from nautical brass, it offers superior corrosion resistance in salt and freshwater environments over ferrous materials, making it the popular choice for engine room installations. If this type of fitting leaks or fractures, the affected circuit may suffer loss of flow, unwanted water entry into the hull, or engine overheating due to insufficient cooling.

When to replace this part?

The most common symptoms that indicate that a male fitting or hose barb needs to be replaced are: presence of moisture or dripping in the hose-fitting joint area, visible corrosion or pitting on the brass body, and hose that is not firmly held due to deformation of the barb. It is recommended to visually inspect this type of fitting at each seasonal inspection, especially after wintering, as temperature cycles and electrolysis can degrade the brass over time. Replacing the fitting preventively at the slightest sign of deterioration avoids navigation breakdowns and possible water ingress that is difficult to manage outside the port.

Compatibility table
