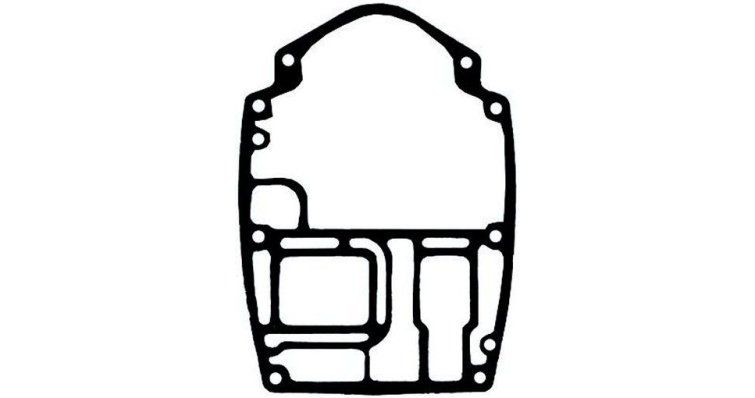

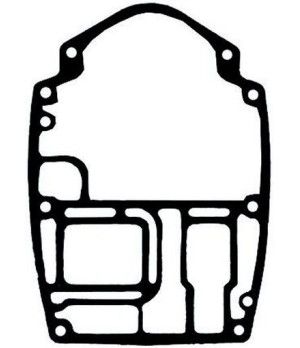

YAMAHA UPPER ENGINE BASE GASKET 66T-45113-A0

Function and technical context

This upper base gasket acts as a critical sealing element at the interface between the engine block and cylinder head on Yamaha outboard engines. Its main function is to guarantee the tightness of the cooling circuit and prevent the entry of salt water into the internal chambers of the engine, a fundamental aspect in marine navigation. A deteriorated or poorly positioned gasket allows coolant leaks, water infiltration into the crankcase and accelerated corrosion of internal components, which leads to overheating, loss of power and irreversible damage to the powertrain.

When to replace this part?

The engine base gaskets show wear due to aging of the elastomeric material, especially after prolonged periods of inactivity or exposure to frequent thermal changes. It is recommended to inspect the condition of the gasket during each seasonal maintenance and replace it preventively if cracks, splitting, loss of elasticity or rust stains are seen around the base of the motor. Carrying out the change preventively avoids costly repairs resulting from water infiltration or corrosion at sea.

Equivalent manufacturer part numbers
