Relé de qualidade para motores Mercury 2 e 4 tempos, de 65 a 250 HP. Componente elétrico essencial para sistemas de ignição e carregamento. Compatível com Mercruiser, Sierra e OMC. com garantia técnica.
Devolução em 14 dias
Gestão de devoluções simples e rápida para que possa comprar com total confiança.
Envio grátis
Em pedidos superiores a 99€
Assessoria Técnica
Em dúvida sobre a peça de substituição, contacte-nos pelo WhatsApp e verificaremos a peça exata.
Pagamento 100% seguro
As transações são protegidas com encriptação SSL e HTTPS. Compre com total tranquilidade.

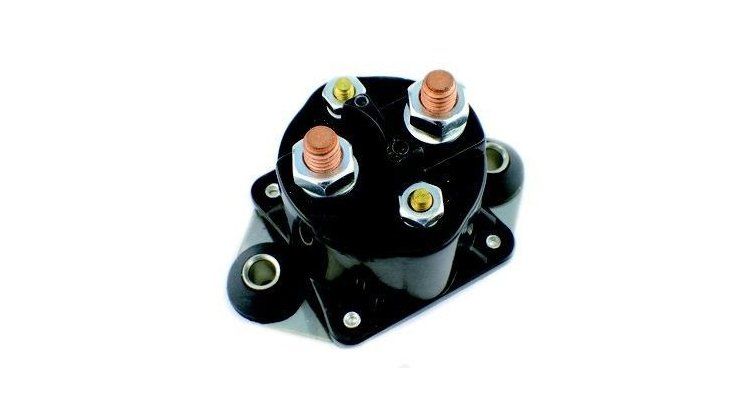

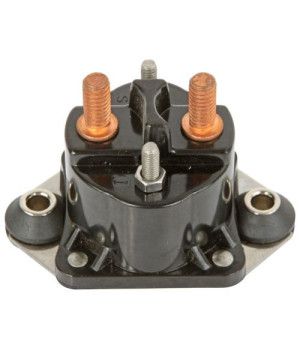

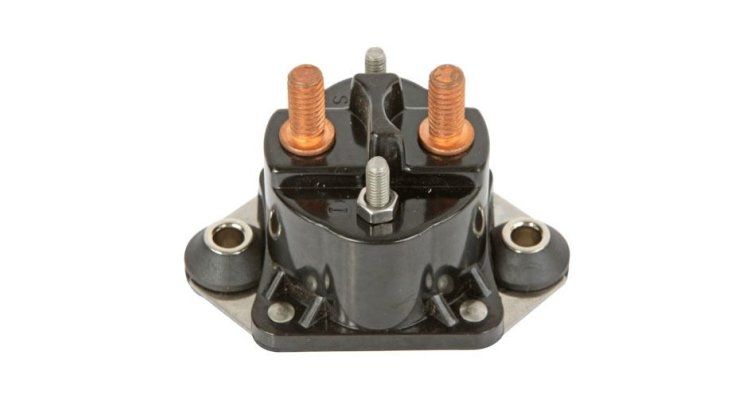

Relé 89-817109A1 para Motores de Popa REC89-817109A3
REC89-817109A3
62,12 €
Com IVA
Relé de qualidade para motores Mercury 2 e 4 tempos, de 65 a 250 HP. Componente elétrico essencial para sistemas de ignição e carregamento. Compatível com Mercruiser, Sierra e OMC. com garantia técnica.
Descrição
Função e contexto técnico
O relé 89-817109A3 é um componente eletromecânico essencial no sistema de ignição e carga dos motores Mercury de dois e quatro tempos. Ele atua como um interruptor de alimentação controlado, permitindo que a unidade de controle do motor gerencie circuitos de alta corrente sem sobrecarregar os sistemas de baixa potência. O seu correto funcionamento garante a distribuição confiável de corrente para os sistemas de partida, carregamento de baterias e ignição, sendo especialmente crítico em aplicações marítimas onde a confiabilidade elétrica determina a segurança da navegação.
Quando substituir esta peça?
O relé apresenta sintomas de falha quando o motor não dá partida apesar de estar com a bateria carregada, ocorre piscar irregular das luzes elétricas ou a bateria não recarrega durante a navegação. Embora não exista um intervalo de manutenção fixo, recomenda-se verificar o estado dos relés durante cada serviço sazonal ou após exposição a ambientes salinos intensos. A substituição preventiva evita quedas inesperadas no mar e protege outros componentes elétricos de possíveis danos secundários devido a falhas na distribuição de corrente.
Compatibilidade do motor Mercury
Motores Mercury Mariner compatíveis
| Marca | Modelo | Rango de serie |
|---|---|---|
| Mercury Mariner | 2.5L (OFFSHORE) | 0G857000 THRU 0T999519 / 0G610239 THRU 0G856999 |
| Mercury Mariner | 3.0L MARATHON | 0T409000 THRU 0T800999 |
| Mercury Mariner | 3.0L SEAPRO | 0T409000 THRU 0T800999 |
| Mercury Mariner | XR-6 / MAGNUM III | 0G960500 THRU 1B226999 / 0G760300 THRU 0G960499 / 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 |
| Mercury Mariner | 40 H.P. (1998) | 0E288000 THRU 0E344999 |
| Mercury Mariner | 40 H.P. (1999) | 0E345000 THRU 0E369299 |
| Mercury Mariner | 50 H.P. (1998) | 0E288000 THRU 0E344999 |
| Mercury Mariner | 50 H.P. (1999) | 0E345000 THRU 0E369299 |
| Mercury Mariner | 65 JET | 0D283222 THRU 0G760299 / 9793577 THRU 0P016999 / 0G760300 THRU 0T979999 / 0P017000 THRU 0P325499 |
| Mercury Mariner | 75 3 CYL | 9793577 THRU 0P016999 / 0D283222 THRU 0 0G760299 / 0G760300 THRU 0T979999 / 0P017000 THRU 0P325499 |
| Mercury Mariner | 75 H.P. (1998) | 0E288000 THRU 0E344999 |
| Mercury Mariner | 75 H.P. (1999) | 0E345000 THRU 0E369299 |
| Mercury Mariner | 75 HP 3 CYL (1.5L) | 1B227000 THRU 1B417701 / 0T980000 THRU 1B226999 / 1B417702 THRU 1B736885 / 1B736885 THRU 2B112577 |
| Mercury Mariner | 75 HP EFI | 1B366823 THRU 2B094995 |
| Mercury Mariner | 80 HP EFI | 1B366823 THRU 2B094995 / 0P459572 THRU 2B094995 |
| Mercury Mariner | 80 HP Jet 3 CYL (1.5L) | 1B586067 THRU 1B736885 / 1B736885 THRU 2B111840 |
| Mercury Mariner | 80 JET | 0D283222 THRU 0G760299 / 9793577 THRU 0P016999 / 0G760300 THRU 0T979999 / 0P017000 THRU 0P325499 |
| Mercury Mariner | 90 3 CYL | 9793577 THRU 0P016999 / 0D283222 THRU 0G760299 / 0G760300 THRU 0T979999 / 0P017000 THRU 0P325499 |
| Mercury Mariner | 90 H.P. (1996) | 0E138600 THRU 0E202999 |
| Mercury Mariner | 90 H.P. (1997) | 0E203000 THRU 0E287999 |
| Mercury Mariner | 90 H.P. (1999) | 0E345000 THRU 0E369299 |
| Mercury Mariner | 90 HP 3 CYL (1.5L) | 0T801000 THRU 1B226999 / 1B227000 THRU 1B417701 / 1B417702 THRU 1B736885 / 1B736885 THRU 1B974258 |
| Mercury Mariner | 90 HP EFI | 1B366823 THRU 2B094995 |
| Mercury Mariner | 95XR (JET DRIVE) | 0E145580 THRU 0E151579 / 0E151580 THRU 0E288445 |
| Mercury Mariner | 95XR (POWERHEAD) | 0E141089 THRU 0E202999 / 0E203000 THRU 0E315904 |
| Mercury Mariner | 100 4 CYL | 9793577 THRU 0P016999 / 0D283222 THRU 0G760299 / 9523034 THRU 9793576 / 0A722297 THRU 0D283221 / 0G760300 THRU 0G965520 / 0P017000 THRU 0P058999 |
| Mercury Mariner | 100 HP EFI | 1B366823 THRU 2B094995 / 0P459572 THRU 2B094995 |
| Mercury Mariner | 105 JET | 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 |
| Mercury Mariner | 110 Jet (2.5L) | 1B690542 THRU 1B974227 |
| Mercury Mariner | 115 4 CYL | 9793577 THRU 0P016999 / 0D283222 THRU 0G760299 / 9559771 THRU 9793576 / 0C100000 THRU 0D283221 / 0G760300 THRU 0T979999 / 0P017000 THRU 0P325499 |
| Mercury Mariner | 115 HP 3 CYL (1.5L) | 0T801000 THRU 1B226999 / 1B227000 THRU 1B417701 / 1B417702 THRU 1B736885 / 1B736885 THRU 2B018763 |
| Mercury Mariner | 115 HP EFI | 1B366823 THRU 2B094995 |
| Mercury Mariner | 115 HP Pro XS 3 CYL (1.5L) | 1B751825 THRU 2B123429 |
| Mercury Mariner | 115 HP V6 CYL (2.5L) | 0G960500 THRU 0T178499 |
| Mercury Mariner | 120 H.P. (1996) | 0E138600 THRU 0E202999 |
| Mercury Mariner | 120 H.P. (1997) | 0E203000 THRU 0E287999 |
| Mercury Mariner | 120XR (JET DRIVE) | 0E145580 THRU 0E151579 / 0E151580 THRU 0E288445 / 0E288446 THRU 0E344999 |
| Mercury Mariner | 120XR (POWERHEAD) | 0E141089 THRU 0E202999 / 0E203000 THRU 0E315904 / 0E315905 THRU 0E341982 |
| Mercury Mariner | 120XR2 (JET DRIVE) | 0E345000 THRU 0E369299 / 0E369300 THRU 0E379999 |
| Mercury Mariner | 120XR2 (POWERHEAD) | 0E369300 THRU 0E384499 / 0E345000 THRU 0E369299 |
| Mercury Mariner | 125 4 CYL | 9793577 THRU 0P016999 / 0D283222 THRU 0G760299 / 0G760300 THRU 0T979999 / 0P017000 THRU 0P325499 |
| Mercury Mariner | 125 HP 3 CYL (1.5L) | 1B736885 THRU 2B112787 |
| Mercury Mariner | 135 HP V6 CYL (2.5L) | 0G960500 THRU 0T178499 / 0T178500 THRU 0T800999 / 0T801000 THRU 1B226999 / 1B227000 THRU 1B417701 / 1B417702 THRU 1B737495 / 0G760300 THRU 0G960499 / 0G590000 THRU 0G760299 |
| Mercury Mariner | V-135 | 0G960500 THRU 0T178499 / 0G760300 THRU 0G960499 / 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 |
| Mercury Mariner | 140 JET | 0G960500 THRU 0T178499 / 0G760300 THRU 0G960499 / 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 |
| Mercury Mariner | V-140 (INTERNATIONAL) | 0T178500 THRU 1B226999 |
| Mercury Mariner | 150 HP PRO MAX/SUPER MAG | 0D935000 THRU 0G610049 |
| Mercury Mariner | 150 HP V6 CYL (2.5L) | 0G960500 THRU 0T178499 / 0T178500 THRU 0T800999 / 0T801000 THRU 1B226999 / 1B227000 THRU 1B417701 / 1B417702 THRU 1B580029 / 0G760300 THRU 0G960499 / 0G590000 THRU 0G760299 |
| Mercury Mariner | 150/200 HP PRO MAX/SUPER MAG | 0G610050 THRU 0G856999 |
| Mercury Mariner | V-150 | 0G960500 THRU 1B226999 / 0G760300 THRU 0G960499 / 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 |
| Mercury Mariner | V-150 HP | 0G760300 THRU 0G960499 / 0G960500 THRU 0T408999 / 0G303046 THRU 0G760299 |
| Mercury Mariner | V-150 HP (2.5L) | 0T409000 THRU 0T800999 / 0T801000 THRU 1B226999 / 1B227000 THRU 2B121048 |
| Mercury Mariner | V-150 HP (MAG) | 0D082000 THRU 0G303045 |
| Mercury Mariner | V-150 HP XRI | 0D082000 THRU 0G303045 |
| Mercury Mariner | 175 HP V6 CYL (2.5L) | 0T178500 THRU 0T800999 / 0T801000 THRU 1B226999 / 1B227000 THRU 1B417701 / 1B417702 THRU 1B508457 |
| Mercury Mariner | 175XR2 JET DRIVE (POWERHEAD) | 0E369300 THRU 0E433153 / 0E151580 THRU 0E369299 |
| Mercury Mariner | 175XR2 JET DRIVE (PUMP) | 0E369300 THRU 0E433153 / 0E151580 THRU 0E369299 |
| Mercury Mariner | V-175 | 0G760300 THRU 0G960499 / 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 |
| Mercury Mariner | V-175 (MAG) | 0D082000 THRU 0G303045 |
| Mercury Mariner | V-175 (SKI) | 0D082000 THRU 0G303045 |
| Mercury Mariner | V-175 EFI (2.5L) | 0T409000 THRU 0T800999 |
| Mercury Mariner | V-175 HP | 0G760300 THRU 0G960499 / 0G960500 THRU 0T408999 / 0G303046 THRU 0G760299 |
| Mercury Mariner | V-175XRI | 0D082000 THRU 0G303045 |
| Mercury Mariner | 200 (3.0L) | 0T750164 THRU 0T800999 / 0T801000 THRU 1B417701 |
| Mercury Mariner | 200 DFI JET DRIVE (POWERHEAD) | 0E384500 THRU 0E435741 / 0E435742 & Up / 1B321662 THRU 1B321669 |
| Mercury Mariner | 200 DFI JET DRIVE (PUMP) | 0E379931 THRU 0E428850 / 0M954922 THRU 0M964698 / 0M964699 & Up |
| Mercury Mariner | 200 DFI M2 JET DRIVE (POWERHEAD) | 0E384500 THRU 0E433351 |
| Mercury Mariner | 200 DFI M2 JET DRIVE (PUMP) | 0E379931 THRU 0E423075 / 0M965234 & Up |
| Mercury Mariner | 200 EFI PRO MAX/SUPER MAG | 0D935000 THRU 0G610079 |
| Mercury Mariner | 200 HP 6 CYL (3.0L) | 0G960500 THRU 0T178499 / 0T178500 THRU 0T598999 / 0T599000 THRU 0T800999 / 0T801000 THRU 1B417701 / 1B417702 THRU 1B504988 / 0G760300 THRU 0G960499 / 0G386496 THRU 0G589999 / 0G590000 THRU 0G760299 |
| Mercury Mariner | 200 HP XS 6 CYL (2.5L) | 0T235000 THRU 0T818180 / 0T818181 THRU 1E000796 / 1E000797 THRU 1E002110 |
| Mercury Mariner | 200 HP XS 6 CYL (2.5L) ROS | 1E050852 THRU 1E053876 |
| Mercury Mariner | 200 HP XS SST 6 CYL (2.5L) | 1E050629 THRU 1E053875 |
| Mercury Mariner | V-200 | 0G960500 THRU 1B226999 / 0G760300 THRU 0G960499 / 0D082000 THRU 0G303045 / 0G303046 THRU 0G760299 / 0G960500 THRU 0T408999 |
| Mercury Mariner | V-200 (2.5L) | 0T409000 THRU 0T800999 / 0T801000 THRU 1B226999 / 1B227000 THRU 2B121048 |
| Mercury Mariner | V-200 (MAG) | 0D082000 THRU 0G303045 |
| Mercury Mariner | V-200XRI | 0D082000 THRU 0G303045 |
| Mercury Mariner | 210 CARB JET DRIVE (POWERHEAD) | 0E384500 THRU 0E433153 |
| Mercury Mariner | 210 CARB JET DRIVE (PUMP) | 0E379931 THRU 0E433153 |
| Mercury Mariner | 210 CARB M2 JET DRIVE (POWERHEAD) | 0E373939 THRU 0E426999 |
| Mercury Mariner | 210 CARB M2 JET DRIVE (PUMP) | 0E370718 THRU 0E426999 |
| Mercury Mariner | 225 (3.0L) | 0G760300 THRU 0T408999 / 0T409000 THRU 0T800999 / 0T801000 THRU 1B417701 / 0D280813 THRU 0G760299 |
| Mercury Mariner | 225 (3.0L) MARATHON | 0T801000 THRU 1B417701 |
| Mercury Mariner | 225 (3.0L) SEAPRO | 0T801000 THRU 1B417701 |
| Mercury Mariner | 225 EFI PRO MAX/SUPER MAG | 0G857000 THRU 0T429939 / 0G610104 THRU 0G856999 |
| Mercury Mariner | 225 HP 6 CYL (3.0L) | 0G960500 THRU 0T178499 / 0T178500 THRU 0T598999 / 0T599000 THRU 0T800999 / 0T801000 THRU 1B417701 / 1B417702 THRU 1B504988 / 0G760300 THRU 0G960499 / 0G590000 THRU 0G760299 |
| Mercury Mariner | 225 HP SPORT XS 6 CYL (2.5L) | 1E002584 THRU 1E050825 |
| Mercury Mariner | 225 HP XS 6 CYL (2.5L) | 1E002584 THRU 1B792195 |
| Mercury Mariner | 225 MARATHON (3.0L) | 0G760300 THRU 0T408999 / 0G245605 THRU 0G760299 |
| Mercury Mariner | 225 SEAPRO (3.0L) | 0G760300 THRU 0T408999 / 0G245605 THRU 0G760299 |
| Mercury Mariner | 240 EFI JET DRIVE (POWERHEAD) | 0E384500 THRU 0E406399 / 0E406400 & Up |
| Mercury Mariner | 240 EFI JET DRIVE (PUMP) | 0E379931 THRU 0E406399 / 0E406400 & Up |
| Mercury Mariner | 240 EFI M2 JET DRIVE (POWERHEAD) | 0E373939 THRU 0E384499 / 0E406400 & Up / OE384500 THRU 0E406399 |
| Mercury Mariner | 240 EFI M2 JET DRIVE (PUMP) | 0E370718 THRU 0E379930 / 0E406400 & Up / 0E379931 THRU 0E406399 |
| Mercury Mariner | 250 (3.0L) | 0T409000 THRU 0T800999 / 0T801000 THRU 1B417701 / 0G760300 THRU 0T408999 |
| Mercury Mariner | 250 DFI JET DRIVE (POWERHEAD) | 0E407100 & Up |
| Mercury Mariner | 250 DFI JET DRIVE (PUMP) | 0E407100 & Up |
| Mercury Mariner | 250 DFI M2 JET DRIVE (POWERHEAD) | 0E407100 & Up |
| Mercury Mariner | 250 DFI M2 JET DRIVE (PUMP) | 0E407100 & Up |
| Mercury Mariner | 250 HP Sport XS 6 CYL (2.5L) | 1E002342 THRU 1E051823 |
| Mercury Mariner | 250 HP XS 6 CYL (3.0L) | 1E002342 THRU 1E051113 |
| Mercury Mariner | 250XB (3.0L) | 0G980600 THRU 0T800999 |
| Mercury Mariner | 300 (3.0L) ProMax | 0G610221 THRU 0T105297 |
| Mercury Mariner | 300 (3.0L) SuperMagnum | 0G610221 THRU 0T105297 |
| Mercury Mariner | 300 HP XS 6 CYL (3.2L) | 1E001867 THRU 1E052057 |
| Mercury Mariner | 300X (3.0L) PRO MAX | 0T235084 THRU 0T429939 / 0T429940 THRU 0T999587 |
Referências equivalentes do fabricante
| Fabricante/Marca | Referência/Part Number |
|---|---|
| Mercury/MerCruiser | 817109A3, 803822T, ✓, (actual), 817109A1, 817109A2, 89-817109A1, 89-817109A2, 89-817109A3, F177917 |
| OMC | 0979774 |
