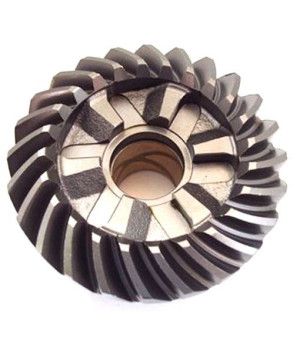

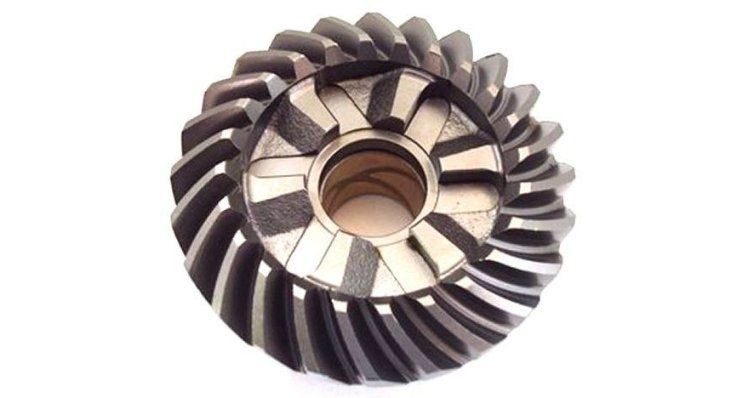

FORWARD DRIVE PIN 697-45560-00

Function and technical context

The forward gear is a critical component of the drive system that enables forward propulsion of the boat. Coupled to the engine output shaft, this gear transmits power from the crankshaft to the propeller through the gear reversal system. Its correct operation is essential to guarantee directional control and acceleration of the outboard motor, being especially important in docking and navigation maneuvers in confined waters. Wear or breakage of the pinion compromises the propulsion capacity of the engine and can result in a total loss of traction.

When to replace this part?

Symptoms of pinion deterioration include difficulty or inability to engage in forward gear, metallizing noises under load, abnormal vibration during acceleration, and slippage when changing gears. On heavily used boats or in saltwater environments, it is recommended to inspect the condition of the sprocket during each seasonal inspection, especially after strandings or impacts against submerged objects. Preventative replacement of the pinion prevents unexpected strandings at sea and costly emergency repairs of the entire drive system.

Compatible Yamaha engines

Equivalent manufacturer part numbers
