BASE BOARD 689-44324-A0

Function and technical context

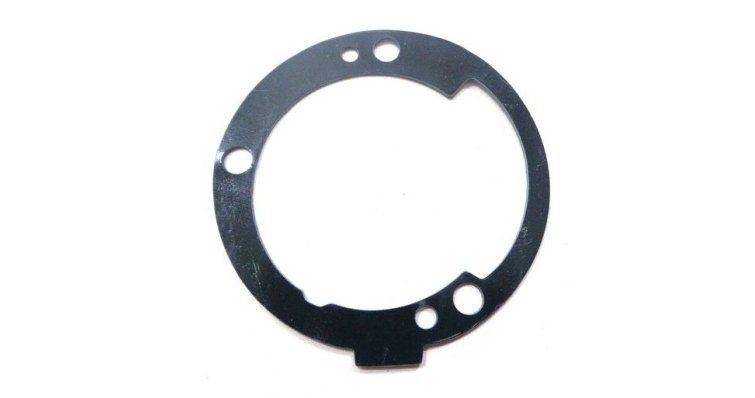

The 689-44324-A0 base gasket is a critical sealing element in the cooling system of Yamaha and Mercury marine engines. This piece acts as a hermetic seal between the base of the engine block and the body of the water pump, preventing coolant leaks to the outside. Its integrity is essential to maintain the correct circulation of the refrigerant fluid and avoid pressure loss in the cooling circuit. A deterioration or breakage of this gasket directly compromises the effectiveness of the cooling system, and may cause overheating of the engine and entry of salt water into the internal chambers.

When to replace this part?

Base gaskets show signs of aging after several years of operation, especially in engines subjected to continuous heating and cooling cycles. Typical symptoms include visible coolant loss around the engine base, mineral deposits in the sealing area, and abnormal overheating while cruising. It is recommended to inspect this gasket during each seasonal maintenance and replace it preventively when it is 5-7 years old or after any intervention that involves access to the cooling system. A proactive change avoids unforeseen breakdowns at sea and prevents costly secondary damage to the engine block.

Equivalent manufacturer part numbers
