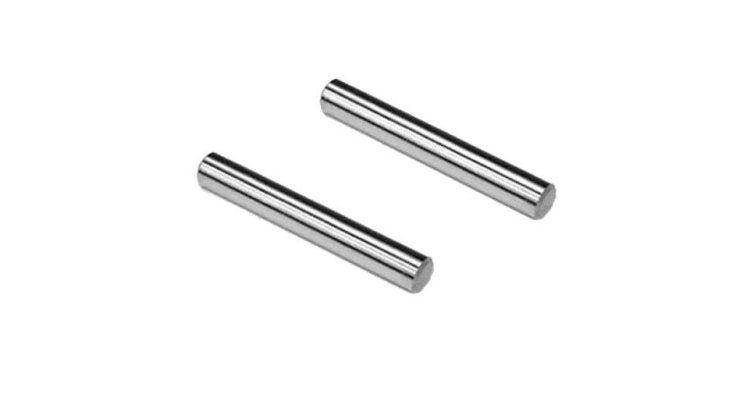

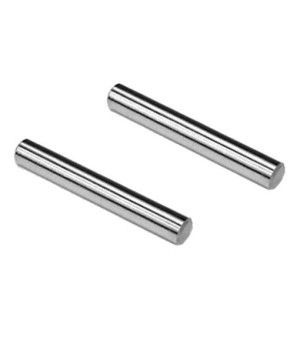

PIN 90250-03M10

Function and technical context

This pin acts as a fixing and alignment element in critical mechanical assemblies of the marine engine, guaranteeing the correct position of components subjected to continuous vibration and torsional stress. Its function is to maintain dimensional stability between coupled parts, preventing movements that could cause misalignment of the transmission shaft, loss of power or entry of water into internal cavities. In Yamaha and Mercury engines, it operates in drive systems where mounting precision is essential to avoid abnormal friction, premature wear of mechanical seals and galvanic contact corrosion.

When to replace this part?

The pin should be inspected when abnormal vibrations are observed in the motor, excessive play in couplings or small salt water leaks in mounting areas; active corrosion, visible deformation or partial fracture are direct indicators of functional failure. Although there is no strict hourly interval as with impellers or filters, it is recommended to check the condition during each seasonal maintenance, especially after navigation in salt waters where pitting corrosion advances rapidly. Preventatively replacing this pin at major overhauls prevents emergency repairs at sea and prolongs the life of adjacent seals and bearings.

Equivalent manufacturer part numbers
