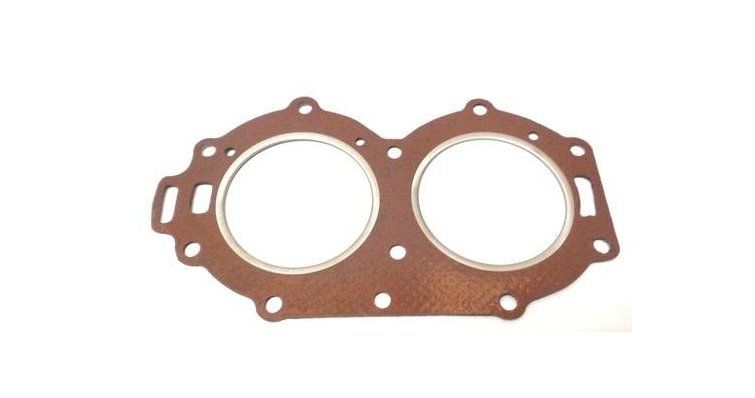

CYLINDER HEAD GASKET 61N-11181-A1

Function and technical context

The head gasket is the critical sealing element that joins the engine block to the cylinder head, establishing an airtight barrier between the combustion chamber and the cooling and lubrication passages. In Yamaha outboard engines, this gasket withstands extreme pressures derived from combustion and cyclical temperature changes during navigation. Its degradation compromises the tightness of the engine, allowing coolant leaks into the crankcase or water infiltration into the combustion chamber, which causes loss of power, overheating and accelerated corrosion of internal components.

When to replace this part?

The head gasket should be inspected during each seasonal maintenance and replaced if it shows signs of compression, discoloration or loss of elasticity. Symptoms of failure include loss of compression detected in cylinder tests, presence of milky coolant in the engine oil, or abnormal white smoke coming from the exhaust. Preventive replacement in deep overhaul cycles prevents catastrophic breakdowns in navigation and significantly prolongs engine life.

Equivalent manufacturer part numbers
