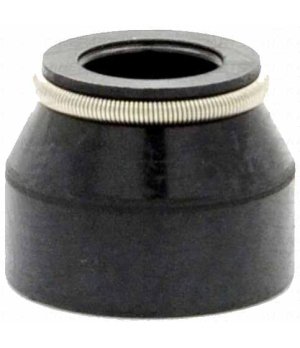

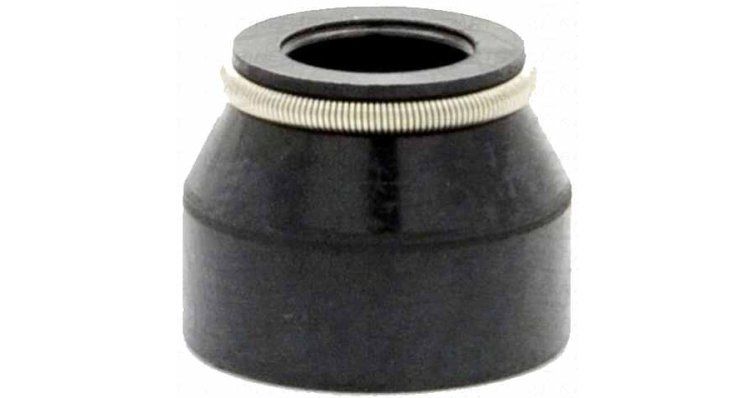

SUZUKI SHIFT ROD SEAL

Function and technical context

The shift rod retainer is part of the gear selection system of the inverter or gearbox of the outboard motor, acting as a watertight seal around the rod that transmits the shifting movement between forward, neutral and reverse. Its mission is to prevent salt water or humidity from penetrating into the shifting mechanism, while retaining the lubricants inside to ensure correct sliding of the rod. A deteriorated seal causes water leaks into the rod housing, contamination of the gearbox oil, and can lead to inaccurate gearing or blocking of the gear selection system, with the safety consequences that this implies on board.

When to replace this part?

The most common symptoms of a shift rod seal in poor condition are: presence of humidity or water in the rod housing, difficulty in engaging the gears with the control lever, excessive play in the rod or visible microleaks around the exit point of the rod from the engine body. It is recommended to inspect this seal during each seasonal maintenance and replace it if there is any sign of rigidity or deformation of the sealing lip, since the elastomer hardens with prolonged exposure to seawater and thermal changes. Replacing it preventively during the annual inspection avoids breakdowns during docking or navigation, where a failed gear selection can become a serious problem.
