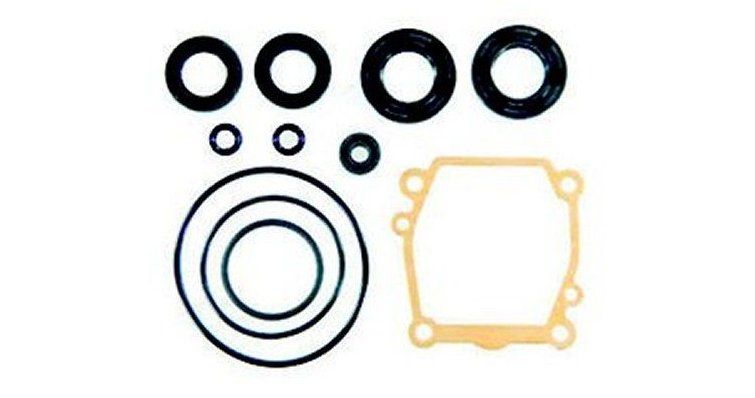

Seal Kit Stern 25700-90J01

Function and Technical Context

The stern seal kit groups together the sealing elements that protect the drive shaft in the coupling zone between the engine block and the reduction gearbox/stern drive, preventing seawater from entering the bearings and the interior of the propulsion unit. It operates in the transmission and propulsion system of the outboard motor, acting as a sealing barrier between the aquatic environment and internal mechanical components subjected to continuous rotation. A degraded seal or one with damaged lips causes infiltration of salt or fresh water that contaminates lubrication, accelerates internal corrosion, and can result in shaft seizure or premature bearing failure. This kit is manufactured to the fit specifications and tolerances required by Suzuki for models DF90, DF100, DF115, and DF140 from series K1 to K11, guaranteeing reliable sealing under the pressure and temperature conditions inherent to marine use.

When to Replace This Part?

The most common signs of wear in the stern seals are the presence of whitish emulsion or foam in the reduction gearbox oil—an unmistakable sign of water contamination—visible moisture in the shaft seal area, and lubricant consumption higher than normal. It is recommended to inspect the condition of these seals at each stern oil change (normal interval of 100 hours or at the start of each season) and proceed with preventive replacement upon any sign of deterioration of the rubber lip. Renewing the seal kit at the right time avoids serious breakdowns at sea and protects components of much higher cost, such as propeller bearings and bevel gears.
