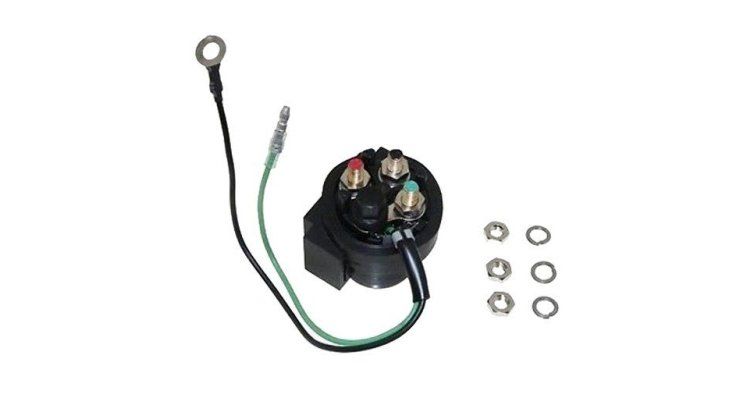

Trim Tilt Relay 5031483 6E5-8195A-01

REC6E5-8195A-01
€103.75
Tax included
Control relay for trim and tilt systems in outboard motors. Compatible with Johnson/Evinrude E25, E30, E40, E50, E70, J40, J50, J60, J70, J90, J115, J140, BJ40, BJ50, BJ60, BJ70, BJ90, BJ115, as well as Mercury, Suzuki, Yamaha and Tohatsu.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Thursday 30 July and Friday 31 July with Correos Express

Description

Function and Technical Context

The trim and tilt relay is the electromechanical component responsible for managing the polarity reversal of the electric motor in the hydraulic trim system, allowing the outboard motor to be raised and lowered in a controlled manner. It operates within the electrical control circuit of the trim and tilt system, functioning as a power switch that channels current from the battery to the hydraulic motor according to the pilot's button command. Without a relay in proper working condition, the trim system ceases to respond fully or partially, preventing adjustment of the motor angle relative to the transom and compromising navigation performance, fuel consumption, and safety during beaching maneuvers or operation in shallow waters. This relay is compatible with multiple outboard motor brands and series thanks to its industry-standard design, being referenced under the codes 6E5-8195A-01 (Yamaha), 5031483 / 5032197 (OMC/Johnson/Evinrude), 134 / 804281T (Mercury/Mariner) and 38410-94550 (Suzuki), among others.

When to Replace This Part?

The most common symptoms of a defective trim/tilt relay are: the trim system does not respond when pressing the control (neither raises nor lowers), the motor responds in only one direction (raises or lowers only), a clicking or audible click is heard when pressing the button but the hydraulic motor does not start, or intermittent and involuntary activations occur. Since this is a component subject to constant vibration, moisture, and repeated electrical charge cycles, it is advisable to inspect it during each seasonal service and replace it at the first sign of irregular operation. Replacing the relay preventively at the first signs of failure prevents being stranded with the motor in an incorrect position, a situation that is especially critical during anchoring, beaching, or solo cruising.

Compatible Johnson/Evinrude Engines

SeriesModels
BJ40BJ40PL4SRS
BJ50BJ50PL4SRS
BJ60BJ60PL4SOA, BJ60PL4SRR, BJ60PL4STC
BJ70BJ70PL4SOA, BJ70PL4SRR, BJ70PL4STC
BJ90BJ90PL4STS, BJ90PX4STS
BJ115BJ115L4STS, BJ115X4STS
E25E25EL4SIC 4-Stroke, Elec. Start, 20 IN. shaft 2001, E25EL4SSS 4-Stroke, Elec. Start, 20 IN. shaft 2000, E25PL4SIC 4-Stroke, Elec. Start, TNT, 15 IN. shaft 2001, E25PL4SSS 4-Stroke, Elec. Start, TNT, 15 IN. shaft 2000, E25R4SIC 4-Stroke, Rope Start, Tiller, 15 IN. shaft 2001, E25R4SSS 4-Stroke, Rope Start, Tiller, 15 IN. shaft 2000, E25RL4SIC 4-Stroke, Rope Start, Tiller, 20 IN. shaft 2001, E25RL4SSS 4-Stroke, Rope Start, Tiller, 20 IN. shaft 2000, E25TE4SIC 4-Stroke, Elec. Start, Tiller, 15 IN. shaft 2001, E25TE4SSS 4-Stroke, Elec. Start, Tiller, 15 IN. shaft 2000, E25TEL4SIC 4-Stroke, Elec. Start, Tiller, 20 IN. shaft 2001, E25TEL4SSS 4-Stroke, Elec. Start, Tiller, 20 IN. shaft 2000
E30E30EL4SIC 4-Stroke, Elec. Start, 20 IN. shaft 2001, E30EL4SSS 4-Stroke, Elec. Start, 20 IN. shaft 2000, E30PL4SIC 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2001, E30PL4SSS 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2000, E30R4SIC 4-Stroke, Rope Start, Tiller, 15 IN. shaft 2001, E30R4SSS 4-Stroke, Rope Start, Tiller, 15 IN. shaft 2000, E30RL4SIC 4-Stroke, Rope Start, Tiller, 20 IN. shaft 2001, E30RL4SSS 4-Stroke, Rope Start, Tiller, 20 IN. shaft 2000, E30TE4SIC 4-Stroke, Elec. Start, Tiller, 15 IN. shaft 2001, E30TE4SSS 4-Stroke, Elec. Start, Tiller, 15 IN. shaft 2000, E30TEL4SIC 4-Stroke, Elec. Start, Tiller, 20 IN. shaft 2001, E30TEL4SSS 4-Stroke, Elec. Start, Tiller, 20 IN. shaft 2000
E40E40PL4EES 1999, E40PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft 2001, E40PL4SSC 4-Stroke, Elec Start, TNT, 20 IN. shaft 2000
E50E50PL4EES 1999, E50PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft 2001, E50PL4SSC 4-Stroke, Elec Start, TNT, 20 IN. shaft 2000
E70E70 PL4SSR 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2000, E70FTLECS 1998, E70PL4EEC 1999, E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN. shaft 2001
J40J40PL4SNF 4-Stroke, Remote, White, 20 in. shaft, Power Trim&Tilt 2002, J40PL4SRM, J40PL4STC
J50J50PL4SNF 4-Stroke, Remote, White, 20 in. shaft, Power Trim&Tilt 2002, J50PL4SRM, J50PL4STC
J60J60PL4SNF 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2002, J60PL4SOA, J60PL4SRR, J60PL4STC
J70J70FLTLECS 1998, J70PL4SNF 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2002, J70PL4SOA, J70PL4SRR, J70PL4STC
J90J90PL4STS, J90PX4STS
J115J115PL4STS, J115PX4STS
J140J140CX4STS, J140PL4STS, J140PX4STS



Equivalent Manufacturer References

Manufacturer/BrandReference/Part Number
Mercury/Mariner/Mercruiser134, 804281T, 804282T, 851839, 898103T09, 898103T10
OMC0769129, 5030831, 5031483, 5032195, 5032197, 5034362
Suzuki38410-94550, 38410-94551, 38410-94552, 38410-94552-000, 38420-94550
Yamaha6E5-81950-01, 6E5-8195A-01, 6E5-8195C-01, 6E58195001, 6E5819500100, 6E58195A01, 6E58195C01
Tohatsu3C8-72580-0, 3C8725800, 3C8725800M
