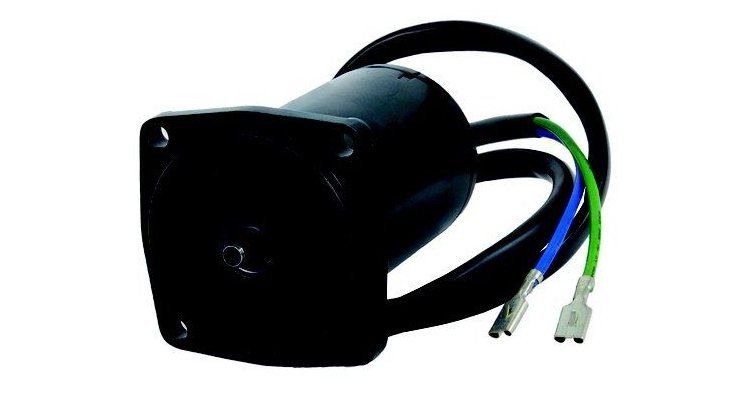

OMC 435548 TRIM MOTOR

Function and technical context

The trim motor is the electric actuator responsible for regulating the angle of inclination of the outboard motor with respect to the transom, allowing the position of the propeller to be adjusted to optimize the hydrodynamic performance of the boat in different navigation conditions. It is part of the hydraulic trim and trim system, working in conjunction with the pressure pump and lift cylinders to generate controlled movement of the engine. In commercial V6 and V8 engines from Johnson and Evinrude, this component supports considerable mechanical loads given the torque and weight of these large displacement units, so its correct operation is essential to maintain maneuverability and propulsion efficiency. If the trim motor fails, the pilot loses the ability to adjust the angle of the propeller, which can result in excessive fuel consumption, loss of top speed, difficulty raising the bow on planing, or inability to extract the motor from the water to protect it at anchor.

When to replace this part?

The most common symptoms of a faulty or worn trim motor include a lack of response to the operation of the trim button, irregular or choppy movement of the outboard motor, abnormal noises during up or down operation, and the inability of the system to maintain the chosen trim position once the control is released. In heavy-duty engines such as commercial V6 and V8, it is recommended to check the condition of the trim motor during each seasonal maintenance, paying special attention to the integrity of the wiring, the connection terminals and the electrical consumption of the actuator. Replacing the trim motor at the first signs of failure prevents more costly breakdowns in the entire hydraulic system and avoids risk situations due to losing control of the propulsion angle during navigation.

Compatible Johnson/Evinrude Engines

Equivalent manufacturer part numbers
