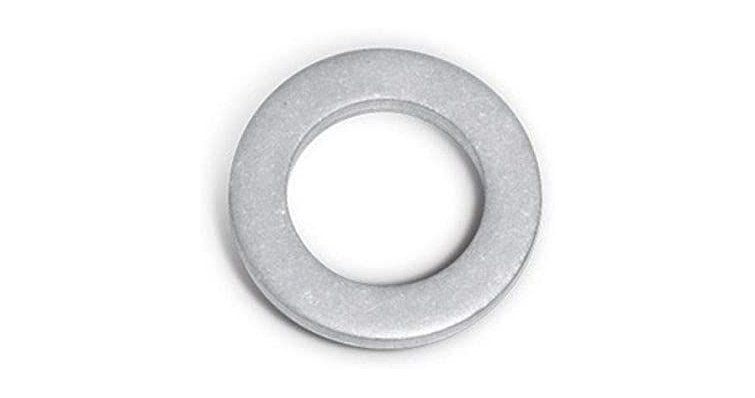

5030465 CRANKCASE PLUG GASKET

Function and technical context

The sump plug gasket is a sealing element of the outboard motor's lubrication system: it acts as a watertight barrier between the drain plug and the oil sump, preventing lubricant leaks during operation and after each oil change. Its correct condition is essential to maintain the appropriate oil level and pressure in the internal lubrication circuit; If this gasket fails or loses its sealing capacity, the oil can progressively escape, compromising the lubrication of the engine's moving parts and leading to premature wear or serious breakdowns. Manufactured to fit precisely to the plug and crankcase housing, it guarantees an airtight seal even in the face of thermal cycles and vibrations typical of navigation.

When to replace this part?

The most common symptoms of deterioration of the sump plug gasket are the appearance of stains or oil drips on the bottom of the engine, a decreasing lubricant level between oil changes and, in advanced cases, the smell of burning oil. It is recommended to replace this gasket with each oil change - which in Suzuki outboard engines is usually done every season or every 100 hours of operation - since its cost is minimal compared to the risk of an unnoticed leak while boating. Renewing it preventively during each maintenance is the common practice among professional naval mechanics.
