Oil filter for lubrication systems in Johnson and Evinrude small displacement engines. Compatible with BE10, BE15, BJ10, BJ15, E10, E15, E70, J10, J15, J70 and L10, ensuring effective lubricant filtration in recreational and professional vessels.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

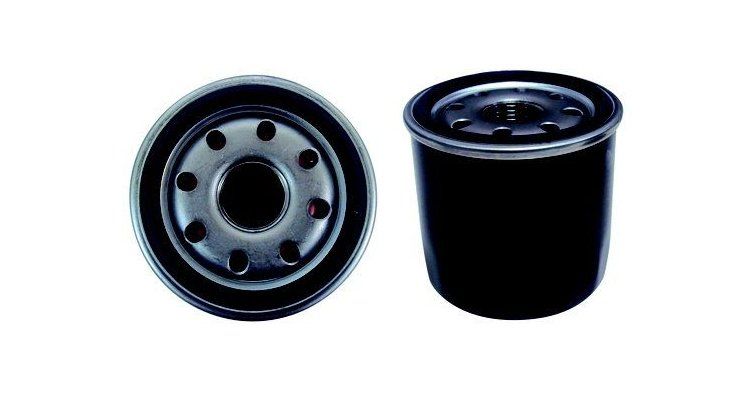

Johnson Oil Filter 434839
REC434839
€10.47
Tax included
Oil filter for lubrication systems in Johnson and Evinrude small displacement engines. Compatible with BE10, BE15, BJ10, BJ15, E10, E15, E70, J10, J15, J70 and L10, ensuring effective lubricant filtration in recreational and professional vessels.
Description
Function and Technical Context
The oil filter is an essential component of the lubrication system in Johnson and Evinrude outboard engines of the 10, 15 and 70 HP series, as well as in 15 HP Suzuki engines compatible with reference 434839. Its mission is to retain metallic particles, combustion residues and suspended contaminants that circulate with the oil, preventing them from reaching the bearings, crankshaft and other engine friction surfaces. A filter in good condition ensures that the oil maintains its lubricating and cooling capacity throughout the entire internal circuit, reducing premature wear of moving components. If the filter becomes clogged or deteriorated, oil pressure may fall below the safe threshold, causing excessive friction between parts, increased internal temperature and, in extreme cases, engine seizure away from port.
When to Replace This Part?
The most common symptoms of an exhausted oil filter are the illumination of the low oil pressure warning light, a dry metallic sound on cold start or visibly black and thick oil on the level dipstick. As a general rule of preventive maintenance on outboard engines, it is recommended to change the oil filter with each engine oil change, usually every season or every 100 hours of navigation, whichever comes first. Performing this change systematically is the simplest and most economical measure to avoid serious failures in the lubrication circuit that could leave you stranded at sea.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| BE10 | BE10FDLECM 1998, BE10FDLEDR 1996, BE10FDLEUA 1997, BE10FPXEDC 1996, BE10FPXEUR 1997, BE10FRELDR 1996, BE10FRELUA 1997 |
| BE15 | BE15FAEDR 1996, BE15FAEUA 1997, BE15FDLECM 1998, BE15FDLEDR 1996, BE15FDLEUA 1997, BE15FKEDR 1996, BE15FKEUA 1997, BE15FREDR 1996, BE15FRELEDR 1996, BE15FRELUA 1997, BE15FREUA 1997, BE15FWECA 1998, BE15FWEDC 1996, BE15FWEUR 1997, BE15FWLECA 1998, BE15FWLEDC 1996, BE15FWLEUR 1997 |
| BJ10 | BJ10FDLECM 1998, BJ10FDLEDR 1996, BJ10FDLEUA 1997, BJ10FPXEDC 1996, BJ10FPXEUR 1997, BJ10FRELDR 1996, BJ10FRELUA 1997 |
| BJ15 | BJ15FAEDR 1996, BJ15FAEUA 1997, BJ15FDLECM 1998, BJ15FDLEDR 1996, BJ15FDLEUA 1997, BJ15FKEDR 1996, BJ15FKEUA 1997, BJ15FREDR 1996, BJ15FRELEDR 1996, BJ15FRELUA 1997, BJ15FREUA 1997, BJ15FWECA 1998, BJ15FWEDC 1996, BJ15FWEUR 1997, BJ15FWLECA 1998, BJ15FWLEDC 1996, BJ15FWLEUR 1997 |
| E10 | E10EBL4EEB 1999, E10EL4EEB 1999, E10EL4SID 4-stroke, elec start, remote, 20 in shaft 2001, E10EL4SSE 4-Stroke, Elec. Start, 20 IN shaft 2000, E10EVL4SIC 4-stroke, elec start, 20 in shaft, wht 2001, E10EVL4SSS 4-Stroke, Elec. Start, 20 IN shaft, wht 2000, E10FEXECM 1998, E10FEXEDR 1996, E10FEXEO 1995, E10FEXEUA 1997, E10FRECM 1998, E10FREDR 1996, E10FRELECM 1998, E10FRELEDR 1996, E10FRELEOC 1995, E10FRELEUA 1997, E10FREOC 1995, E10FREUA 1997, E10FRLECM 1998, E10FRLEDR 1996, E10FRLEO 1995, E10FRLEUA 1997, E10R4EEB 1999, E10R4SID 4-stroke, rope start, tiller, 15 in shaft 2001, E10R4SSE 4-Stroke, Rope Start, Tiller, 15 IN shaft 2000, E10RL4EEB 1999, E10RL4SID 4-stroke, rope start, tiller, 20 in shaft 2001, E10RL4SSE 4-Stroke, Rope Start, Tiller, 20 IN shaft 2000, E10RV4SIC 4-stroke, rope start, tiller, 15 in shaft, wht 2001, E10RV4SSS 4-Stroke, Rope Start, Tiller, 15 IN shaft, wht 2000, E10RVL4SIC 4-stroke, rope start, tiller, 20 in shaft, wht 2001, E10RVL4SSS 4-Stroke, Rope Start, Tiller, 20 IN shaft, wht 2000, E10TEX4EEB 1999, E10TEX4SID 4-stroke, elec start, tiller, 25 in shaft 2001, E10TEX4SSE 4-Stroke, Elec. Start, Tiller, 25 IN shaft 2000, E10TVX4SIC 4-stroke, elec start, tiller, 25 in shaft, wht 2001, E10TVX4SSS 4-Stroke, Elec. Start, Tiller, 25 IN shaft, wht 2000 |
| E15 | E15DLEOC 1995, E15EBL4EEB 1999, E15EL4EEB 1999, E15EL4SID 4-stroke, elec start, 20 in shaft 2001, E15EL4SSE 4-Stroke, Elec. Start, 20 IN shaft 2000, E15EVL4SIC 4-stroke, elec start, 20 in shaft, wht 2001, E15EVL4SSS 4-Stroke, Elec. Start, 20 IN shaft, wht 2000, E15FKEDR 1996, E15FKEUA 1997, E15FRECM 1998, E15FREDR 1996, E15FRELECM 1998, E15FRELEDR 1996, E15FRELEUA 1997, E15FREOC 1995, E15FREUA 1997, E15FRLECM 1998, E15FRLEDR 1996, E15FRLEOC 1995, E15FRLEUA 1997, E15KEOC 1995, E15R4EEB 1999, E15R4SID 4-stroke, rope start, 15 in shaft 2001, E15R4SSE 4-Stroke, Rope Start, Tiller, 15 IN shaft 2000, E15RB4EEB 1999, E15RBL4EEB 1999, E15RL4EEB 1999, E15RL4SID 4-stroke, rope start, 20 in shaft 2001, E15RL4SSE 4-Stroke, Rope Start, Tiller, 20 IN shaft 2000, E15RV4SIC 4-stroke,rope start, 15 in shaft, wht 2001, E15RV4SSS 4-Stroke, Rope Start, Tiller, 15 IN shaft, wht 2000, E15RVL4SIC 4-stroke, elec start, 15 in shaft, wht 2001, E15RVL4SSS 4-Stroke, Rope Start, Tiller, 20 IN shaft, wht 2000 |
| E70 | E70 PL4SSR 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2000, E70FTLECS 1998, E70PL4EEC 1999 |
| J10 | J10FEXECM 1998, J10FEXEDR 1996, J10FEXEO 1995, J10FEXEUA 1997, J10FRECM 1998, J10FREDR 1996, J10FRELECM 1998, J10FRELEDR 1996, J10FRELEOC 1995, J10FRELEUA 1997, J10FREOC 1995, J10FREUA 1997, J10FRLECM 1998, J10FRLEDR 1996, J10FRLEO 1995, J10FRLEUA 1997 |
| J15 | J15DLEOC 1995, J15FKEDR 1996, J15FKEUA 1997, J15FRECM 1998, J15FREDR 1996, J15FRELECM 1998, J15FRELEDR 1996, J15FRELEUA 1997, J15FREOC 1995, J15FREUA 1997, J15FRLECM 1998, J15FRLEDR 1996, J15FRLEOC 1995, J15FRLEUA 1997, J15KEOC 1995 |
| J70 | J70FLTLECS 1998 |
| L10 | L10FRELECM 1998, L10FRELEDR 1996, L10FRELEUA 1997 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 0434839, 0765599, 434839 |
