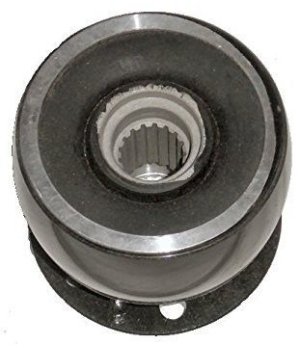

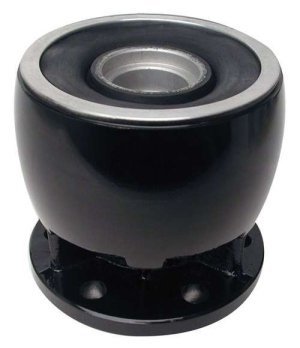

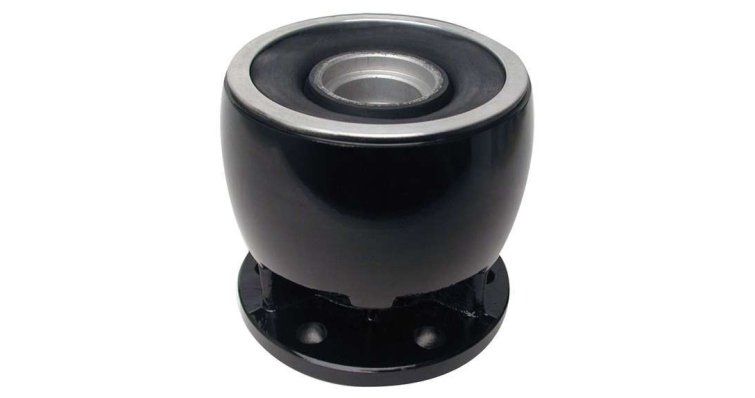

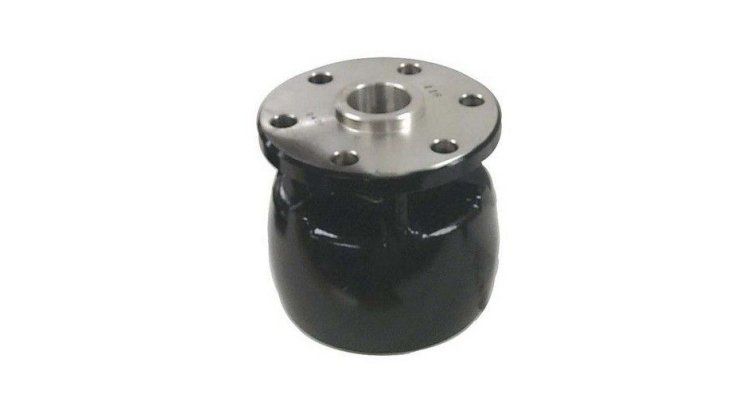

ENGINE COUPLING 76850A2

Function and technical context

The 76850A2 coupling is the mechanical connection element between the engine crankshaft and the transmission shaft in Mercruiser inboard-sterndrive installations, forming part of the propulsion system. Its mission is to transmit the engine torque generated by the GM (Chevrolet) block to the tail, absorbing small misalignments and torsional vibrations that would otherwise damage the drive train. This part was designed specifically for GM engines with two-piece rear main seal, a configuration typical of the inline four-cylinder and V8 blocks manufactured before 1984-1985, in both four-, six- and eight-cylinder versions. A deteriorated or broken coupling causes total loss of power transmission, severe vibrations in the shaft and can cause secondary damage to the transmission plate or the crankshaft itself if it is not attended to in time.

When to replace this part?

The most common symptoms of an engine coupling in poor condition are abnormal vibrations at any speed, metallic knocking when accelerating or decelerating, and sudden loss of propulsion without apparent engine damage. As it is a piece subjected to continuous cycles of torsion and compression, it is recommended to visually inspect it during each seasonal maintenance, paying special attention to cracks, deformations or excessive clearances between the elements of the assembly. Replacing the coupling preventively in the event of any sign of wear avoids higher-cost breakdowns in the crankshaft, transmission box or drive plate, repairs that on the high seas can leave the boat without steering.
