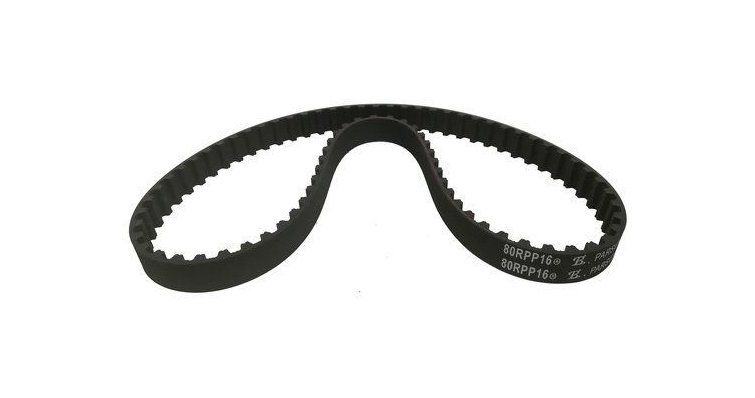

TIMING BELT 831294

Function and technical context

The timing belt is the critical component responsible for synchronizing the rotation of the crankshaft with the camshaft in four-stroke engines. Its function is to transmit the rotary movement precisely, ensuring that the valves open and close at the exact moment of the combustion cycle. This synchronization is essential in the intake and exhaust systems: any misalignment causes severe loss of power, engine jerks, increased consumption and, in extreme cases, collision of pistons and valves with irreversible catastrophic damage. In highly demanding marine engines such as Mercury 25-60 hp 4T and Yamaha F20A-F45A, where reliability is critical for safe navigation, this belt is an active safety element.

When to replace this part?

The timing belt should be inspected regularly for cracks, fraying, tooth deformation, or signs of accelerated wear on the flanks. Although there is no universally fixed interval, it is recommended to check its condition during each seasonal maintenance and replace it preventively every 300-400 hours of navigation or if it shows visible damage, especially before long expeditions or in saltwater conditions where exposure to the environment accelerates aging. Changing it preventively is the best guarantee against unexpected failures at sea, avoiding emergency repairs in a foreign port or, worse still, breakdown in open waters.

Engine Compatibility

Compatible Mercury Mariner Engines

Equivalent manufacturer part numbers
