Measures the angle of the trim knob on Volvo Penta 4.3GXI, 5.0GXI, 5.7GXI, 8.1GXI and MerCruiser 4.3L MPI, 5.7L MPI, 6.2L MPI and 8.1L Inboard engines. The sensor transmits angular position to the ECM in real time for precise control of the trim system. Coverage for engines from 4.3L to 8.2L in GXI, OSI, GI and DPX series.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

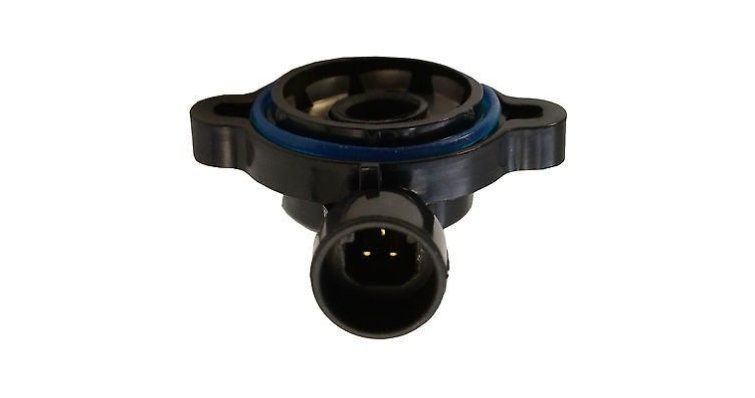

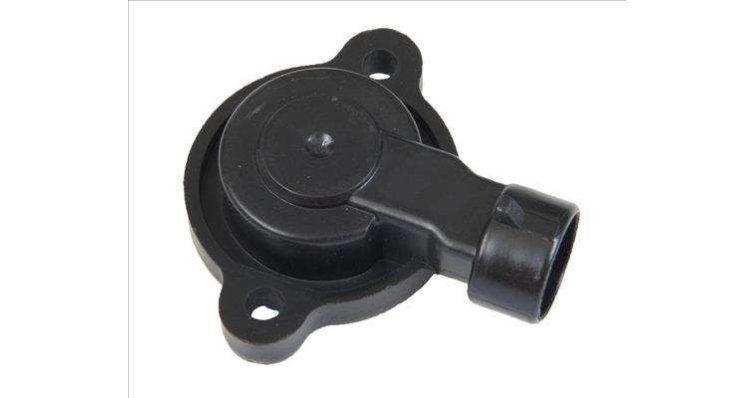

853678T BUTTERFLY POSITION SENSOR
REC853678T
€56.19
Tax included
Measures the angle of the trim knob on Volvo Penta 4.3GXI, 5.0GXI, 5.7GXI, 8.1GXI and MerCruiser 4.3L MPI, 5.7L MPI, 6.2L MPI and 8.1L Inboard engines. The sensor transmits angular position to the ECM in real time for precise control of the trim system. Coverage for engines from 4.3L to 8.2L in GXI, OSI, GI and DPX series.
Description
This throttle position sensor forms a critical component in the control architecture of modern marine propulsion systems. It accurately detects the angular position of the trimmer and provides real-time feedback to the engine management (ECM) system, ensuring optimal operation of the propulsion unit and precise response to navigation commands under continuous operating conditions.
Designed to work in the most demanding marine propulsion applications, this sensor offers proven reliability in high-performance marine environments and is compatible with next-generation electronic control systems. Its installation is essential to maintain the integrity of the trim control system in MerCruiser and Volvo Penta engines with displacements between 4.3L and 8.2L, covering exhaustive coverage in 186 GXi, OSi, Gi and DPX series models.
Engine Compatibility
Compatible Volvo Engines
| Series | Models |
|---|---|
| 4.3OSI Series | 4.3OSI-B, 4.3OSI-BF, 4.3OSI-C, 4.3OSI-CF, 4.3OSI-D, 4.3OSI-DF, 4.3OSI-E, 4.3OSI-EF, 4.3OSI-F, 4.3OSI-FF, 4.3OSI-G, 4.3OSI-GF, 4.3OSI-J, 4.3OSI-JF |
| 4.3GI Series | 4.3GI-200-R |
| 4.3GXI Series | 4.3GXI-225-R, 4.3GXI-B, 4.3GXI-BF, 4.3GXI-C, 4.3GXI-CF, 4.3GXI-D, 4.3GXI-DF, 4.3GXI-E, 4.3GXI-EF, 4.3GXI-F, 4.3GXI-FF, 4.3GXI-G, 4.3GXI-GF, 4.3GXI-J, 4.3GXI-JF, 4.3GXI-P, 4.3GXI-Q |
| 4.3GXIE Series | 4.3GXIE-225-R, 4.3GXIE-M, 4.3GXIE-P, 4.3GXIE-Q |
| 5.0OSI Series | 5.0OSI-B, 5.0OSI-BF, 5.0OSI-C, 5.0OSI-CF, 5.0OSI-D, 5.0OSI-DF, 5.0OSI-E, 5.0OSI-EF, 5.0OSI-F, 5.0OSI-FF, 5.0OSI-G, 5.0OSI-GF, 5.0OSI-J, 5.0OSI-JF |
| 5.0GXI Series | 5.0GXI-B, 5.0GXI-BF, 5.0GXI-C, 5.0GXI-CF, 5.0GXI-D, 5.0GXI-DF, 5.0GXI-E, 5.0GXI-EF, 5.0GXI-F, 5.0GXI-FF, 5.0GXI-G, 5.0GXI-GF, 5.0GXI-J, 5.0GXI-JF, 5.0GXI-N |
| 5.7GXI Series | 5.7GXI-C, 5.7GXI-CF, 5.7GXI-D, 5.7GXI-DF, 5.7GXI-E, 5.7GXI-EF, 5.7GXI-F, 5.7GXI-FF, 5.7GXI-G, 5.7GXI-GF, 5.7GXI-H, 5.7GXI-HF, 5.7GXI-J, 5.7GXI-JF, 5.7GXI-N |
| 5.7OSXI Series | 5.7OSXI-A, 5.7OSXI-AF, 5.7OSXI-B, 5.7OSXI-BF, 5.7OSXI-C, 5.7OSXI-CF, 5.7OSXI-D, 5.7OSXI-DF, 5.7OSXI-E, 5.7OSXI-EF, 5.7OSXI-G, 5.7OSXI-GF, 5.7OSXI-J, 5.7OSXI-JF |
| 5.7GXII Series | 5.7GXII-C, 5.7GXII-D, 5.7GXII-E, 5.7GXII-F, 5.7GXII-G, 5.7GXII-H |
| 5.7OSI Series | 5.7OSI-300-J, 5.7OSI-300-JF, 5.7OSI-A, 5.7OSI-AF, 5.7OSI-B, 5.7OSI-BF, 5.7OSI-C, 5.7OSI-CF, 5.7OSI-D, 5.7OSI-DF, 5.7OSI-E, 5.7OSI-EF, 5.7OSI-G, 5.7OSI-GF |
| 5.7GI Series | 5.7GI-300-J, 5.7GI-300-JF, 5.7GI-300-N, 5.7GI-B, 5.7GI-BF, 5.7GI-C, 5.7GI-CF, 5.7GI-D, 5.7GI-DF, 5.7GI-E, 5.7GI-EF, 5.7GI-F, 5.7GI-FF, 5.7GI-G, 5.7GI-GF |
| 5.7GII Series | 5.7GII-B, 5.7GII-C, 5.7GII-D, 5.7GII-E, 5.7GII-F, 5.7GII-G |
| 7.4GIPE Series | 7.4GIPEFS |
| 7.4GIPB Series | 7.4GIPBYCCE |
| 7.4GIPW Series | 7.4GIPWTR |
| 8.1GI Series | 8.1GI-B, 8.1GI-BF, 8.1GI-C, 8.1GI-CF, 8.1GI-D, 8.1GI-DF, 8.1GI-E, 8.1GI-EF, 8.1GI-F, 8.1GI-FF |
| 8.1GII Series | 8.1GII-A, 8.1GII-B, 8.1GII-C, 8.1GII-D, 8.1GII-E, 8.1GII-F |
| 8.1GSI Series | 8.1GSI-A |
| 8.1GSII Series | 8.1GSII-A |
| 8.1GXI Series | 8.1GXI-A, 8.1GXI-AF, 8.1GXI-B, 8.1GXI-BF, 8.1GXI-C, 8.1GXI-CF, 8.1GXI-D, 8.1GXI-DF, 8.1GXI-E, 8.1GXI-EF |
| 8.1GXII Series | 8.1GXII-A, 8.1GXII-B, 8.1GXII-C, 8.1GXII-D, 8.1GXII-E |
| 8.1OSI Series | 8.1OSI-A, 8.1OSI-AF, 8.1OSI-B, 8.1OSI-BF |
| DPX Series | DPX375-A, DPX375-B, DPX375-BF, DPX375-CF, DPX420-A, DPX420-B, DPX420-BF, DPX420-CF |
| V Series | V6-200-A, V6-225-A, V6-225-E-A |
Compatible MerCruiser Engines
| Marca | Modelo | Rango de serie |
|---|---|---|
| MerCruiser | 4.3L MPI ALPHA/BRAVO | 0M300000 THRU 0M614999 / 0W310000 THRU 0W649999 / 0W650000 THRU 0W658582 / 0W658584 THRU 1A030367 / 1A030370 THRU 1A063239 / 0W658583 THRU 0W658583 / 1A030368 THRU 1A030369 / 1A063240 & Up / 0M615000 THRU 0W309999 |
| MerCruiser | 4.3L MPI ALPHA/BRAVO EC | 1A637496 & Up |
| MerCruiser | 5.0L MPI ALPHA/BRAVO | 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 1A623185 & Up / 1A300000 THRU 1A611927 / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999 |
| MerCruiser | 5.0L MPI ALPHA/BRAVO EC | 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 |
| MerCruiser | 5.7L MPI HORIZON MIE | 1A090000 THRU 1A092168 / 1A092169 & Up |
| MerCruiser | 5.7L MPI MIE | 1A090000 THRU 1A092168 / 1A092169 & Up |
| MerCruiser | 5.7L MPI MIE EC | 1A090000 THRU 1A092168 / 1A092169 & Up |
| MerCruiser | 5.7L MPI SKI | 1A090000 & Up |
| MerCruiser | 5.7L MPI TOW | 1G400000 THRU 1G499999 |
| MerCruiser | 5.7L MPI TOWSPORT WITH GEN III | 1A091881 & Up |
| MerCruiser | 5.7L SKI EC | 1A090000 & Up |
| MerCruiser | 6.2L BLACK SCORPION SKI (GEN+) V-8 | 0L670015 THRU 0M391599 |
| MerCruiser | 6.2L MPI HORIZON MIE | 1A090000 THRU 1A092168 / 1A092169 & Up |
| MerCruiser | 6.2L MPI MIE | 1A090000 THRU 1A092168 / 1A092169 & Up |
| MerCruiser | 6.2L MPI MIE EC | 1A091600 THRU 1A092168 / 1A092169 & Up |
| MerCruiser | MX 6.2L MPI BRAVO | 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999 |
| MerCruiser | MX 6.2L MPI HORIZON BRAVO | 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999 |
| MerCruiser | MX 6.2L MPI HORIZON MIE | 0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398394 |
| MerCruiser | MX 6.2L MPI MIE | 0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398394 |
| MerCruiser | MX 6.2L MPI SKI | 0M317000 THRU 0W689999 |
| MerCruiser | 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 | 0L010003 THRU 0M024330 |
| MerCruiser | 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 | 0L002006 THRU 0L674613 |
| MerCruiser | 8.1L INBOARD | 1G300000 THRU 1G300884 |
| MerCruiser | 8.1L INBOARD (Base) | 0M319125 THRU 0W089999 / 0W090000 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W691821 THRU 1A380318 / 0M026000 THRU 0M319124 / 0W690000 THRU 0W698172 |
| MerCruiser | 8.1L INBOARD (Base) EC | 0W697154 THRU 1A380251 |
| MerCruiser | 8.1L INBOARD (H.O.) | 0M319191 THRU 0W089999 / 0W090000 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 0W698172 / 0W691821 THRU 1A380318 / 0M026000 THRU 0M319190 |
| MerCruiser | 8.1L INBOARD (H.O.) EC | 0W697154 THRU 1A380251 |
| MerCruiser | 8.1L Quicksilver Engine | 1G700000 THRU 1G701415 |
| MerCruiser | 8.2L Mag (Base Model) | 1A351597 & Up |
| MerCruiser | 8.2L Mag (H.O. Model) | 1A351597 & Up |
| MerCruiser | 8.2L Mag EC (Base Model) | 2A051742 THRU 2A051742 / 1A350340 THRU 2A041664 / 2A041665 THRU 2A051741 / 2A051743 & Up |
| MerCruiser | 8.2L Mag EC (H.O. Model) | 1A350340 THRU 2A041664 / 2A051741 THRU 2A051741 / 2A041665 THRU 2A051740 / 2A051742 & Up |
| MerCruiser | 8.2L MPI Bravo | 1G400000 THRU 1G499999 |
| MerCruiser | 350 BLACK SCORPION SKI (GEN+) V-8 | 0K040001 THRU 0M391599 |
| MerCruiser | 350 HORIZON BOBTAIL | 1G700000 THRU 1G799999 |
| MerCruiser | 350 MAG MPI ALPHA/BRAVO | 0L010019 THRU 0L339999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999 |
| MerCruiser | 350 MAG MPI ALPHA/BRAVO EC | 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 |
| MerCruiser | 350 MAG MPI HORIZON ALPHA/BRAVO | 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999 |
| MerCruiser | 350 MAG MPI HORIZON ALPHA/BRAVO EC | 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 |
| MerCruiser | 350 MAG MPI HORIZON MIE | 0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398371 |
| MerCruiser | 350 MAG MPI MIE | 0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398371 |
| MerCruiser | 350 MAG MPI SKI | 0M300000 THRU 0M316999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0W689999 |
| MerCruiser | 350 MAG MPI SKI (GEN+) GM 350 V-8 | 0L002600 THRU 0M310009 |
| MerCruiser | 350 MPI ALPHA | 1G400000 THRU 1G499999 |
| MerCruiser | 350 MPI Alpha/Bravo | 1G700000 THRU 1G799999 |
| MerCruiser | 350 MPI BRAVO | 1G400000 THRU 1G499999 |
| MerCruiser | 350 MPI Crate | 1G400000 THRU 1G499999 |
| MerCruiser | 357 HRZ BOBTAIL RM | 1G300000 THRU 1G399999 |
| MerCruiser | 377 MAG MPI BRAVO | 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 |
| MerCruiser | 377 MAG MPI BRAVO EC | 1A343300 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 |
| MerCruiser | Scorpion 377 | 0K000656 THRU 0L600314 |
| MerCruiser | 383 MAG STROKER BRAVO | 1G400000 THRU 1G499999 |
| MerCruiser | 383 MAG STROKER INBOARD | 1G300000 THRU 1G399999 |
| MerCruiser | 383 MPI FWC Bravo | 1G700000 THRU 1G799999 |
| MerCruiser | 385 Performance Tuned | 1G400000 THRU 1G499999 |
| MerCruiser | 496 BRAVO | 1G701569 THRU 1G799999 / 1G700000 THRU 1G701393 |
| MerCruiser | 496 H.O. BRAVO | 1G400000 THRU 1G412955 / 1G700000 THRU 1G701402 / 1G701569 THRU 1G799999 |
| MerCruiser | 496 MAG (Base Model) | 0M687083 THRU 0W059999 / 1A066166 THRU 1A350678 / 0W060000 THRU 0W309999 / 0W650000 THRU 1A066165 / 1A350679 & Up / 0W310000 THRU 0W649999 / 0M025000 THRU 0M687082 |
| MerCruiser | 496 MAG (H.O. Model) | 0M687144 THRU 0W059999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A066165 / 0M025000 THRU 0M687143 / 1A066166 THRU 1A350678 / 1A350679 & Up |
| MerCruiser | 496 MAG EC (Base Model) | 1A066166 THRU 1A350440 |
| MerCruiser | 496 MAG EC (H.O. Model) | 1A066166 THRU 1A350440 |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury/MerCruiser | 853678, 853678T, 8M0097035, 8M0221731 |
| Indmar | 556103 |
| Volvo | 3857487 |
| OMC | 3857487 |
