LARGE FITTING FILTER 2 MICRONS 889425 RAC2020SM-OR

Function and technical context

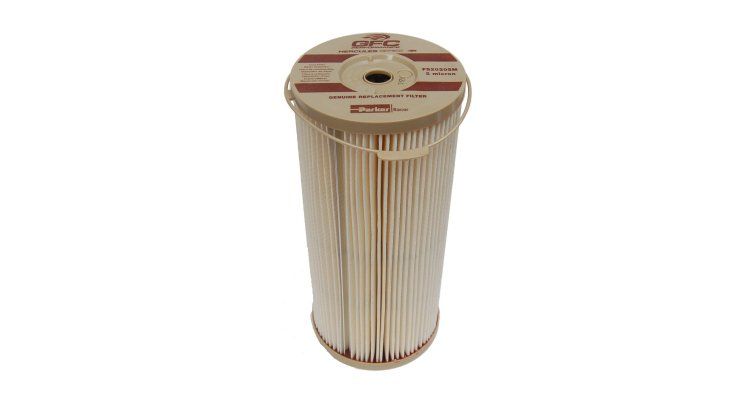

The Racor RAC2020SM-OR filter with a filtration capacity of 2 microns is part of the fuel supply system, acting as a high-precision barrier between the tank and the diesel injection components. Its main function is to retain solid particles, sediments and free water present in the diesel before they reach the high pressure pump and injectors, elements that are extremely sensitive to contamination. Filtration at 2 microns is especially demanding and is designed for common rail injection systems and precision pumps where even microscopic particles can cause premature wear, loss of tightness or blockage of nozzles. Installed in line within the fuel circuit, this element guarantees that the engine always operates with clean fuel, avoiding unforeseen stops and high-cost breakdowns in the injection groups.

When to replace this part?

The most common symptoms of a clogged or deteriorated fuel filter are: difficult starting when cold, drop in power under load, irregular engine operation or jerks during navigation, and in advanced cases, complete stoppage of the engine due to lack of flow. For 2 micron filter elements installed in heavy duty marine diesel engines, it is recommended to replace the cartridge every season or every 200-250 hours of operation, whichever comes first, always following the engine manufacturer's instructions. Changing the filter preventively during annual maintenance is the most effective measure to protect the injection pump and injectors, whose repair or replacement involves a much higher cost than the filter itself.

Engine Compatibility

Equivalent manufacturer part numbers
