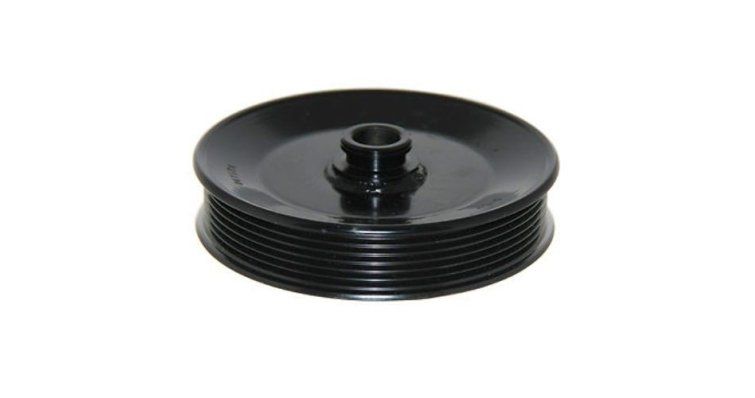

SERPENTINE PULLEY 861578

REC861578
€108.82
Tax included
For MerCruiser 4.3L, 5.0L, 5.7L, 6.2L and 8.2L engines. Regulates the tension and travel of the timing belt that drives the alternator, water pump and air conditioning compressor. Diameter 144.5 mm, width 31.75 mm.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Friday 31 July and Monday 3 August with UPS/DHL/TNT North America

Description

Serpentine Pulley 861578 for Mercruiser

The 861578 serpentine pulley is an essential component of the timing belt system in Mercruiser engines. This pulley regulates the tension and travel of the serpentine belt, guaranteeing the correct operation of engine accessories such as the water pump, alternator and air conditioning compressor. Its dimensions of 5 11/16" diameter (144.5 mm) and 1 1/4" width (31.75 mm) make it compatible with a wide range of marine propulsion engines.



Compatibility with Mercruiser Engines

Mercury/MerCruiser

MarcaModeloRango de serie
MerCruiser4.3L (GEN +) (2 BBL.) GM 262 V-60L010044 THRU 0M614999
MerCruiser4.3L (GEN +) (4BBL) Reman1G400000 THRU 1G416776
MerCruiser4.3L Alpha 4V EST1G417302 THRU 1G499999
MerCruiser4.3L CARB ALPHA/BRAVO0W300013 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A063239 / 1A063240 & Up / 0M615000 THRU 0W300012
MerCruiser4.3L EFI (GEN+) TBI GM 262 V-60L012009 THRU 0L618999 / 0L619000 THRU 0M322780
MerCruiser4.3L MPI ALPHA/BRAVO0W658584 THRU 1A030367 / 1A030370 THRU 1A063239 / 1A030368 THRU 1A030369 / 1A063240 & Up / 0M300000 THRU 0M614999 / 0W310000 THRU 0W649999 / 0W658583 THRU 0W658583 / 0M615000 THRU 0W309999 / 0W650000 THRU 0W658582
MerCruiser4.3L MPI ALPHA/BRAVO EC1A637496 & Up
MerCruiser4.3LH (GEN +) (4 BBL.) GM 262 V-60L010044 THRU 0M614999
MerCruiser4.3LX (GEN +) (2 BBL.) GM 262 V-60F803000 THRU 0K999999
MerCruiser4.3LXH (GEN +) (4 BBL.) GM 262 V-60F803114 THRU 0K999999
MerCruiser4.5L MPI 200 Alpha/Bravo2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 200 Alpha/Bravo EC2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 250 Alpha/Bravo2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 250 Alpha/Bravo EC2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser5.0L (2 BBL.) GM 305 V-80L015751 THRU 0M599999
MerCruiser5.0L CARB ALPHA/BRAVO0W300010 THRU 0W309999 / 0W650000 & Up / 0M600000 THRU 0W300009 / 0W310000 THRU 0W649999
MerCruiser5.0L EFI GM 305 V-80L331631 THRU 0M299999
MerCruiser5.0L MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 1A300000 THRU 1A611927 / 0M600000 THRU 0W059999 / 0W650000 THRU 1A299999 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser5.0L MPI ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser5.7L (2 BBL.) GM 350 V-80L010037 THRU 0M599999
MerCruiser5.7L CARB ALPHA/BRAVO0W300755 THRU 0W309999 / 0W650000 & Up / 0M600000 THRU 0W300754 / 0W310000 THRU 0W649999
MerCruiser5.7L EFI GM 350 V-80L325977 THRU 0M299999
MerCruiser6.2L MPI 3002A530776 & Up / 2A456613 THRU 2A530775
MerCruiser6.2L MPI 300 EC2A530776 & Up / 2A456613 THRU 2A530775
MerCruiser6.2L MPI 3502A530776 & Up / 2A456613 THRU 2A530775
MerCruiser6.2L MPI 350 EC2A530776 & Up / 2A456613 THRU 2A530775
MerCruiser6.2L MPI EC JET 3702A674166 & Up
MerCruiser6.2L MPI EC TOW 3202A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI EC TOW 3702A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI JET 3702A674166 & Up
MerCruiser6.2L MPI MIE 3002A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE 3502A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE EC 3002A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE EC 3502A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI TOW 3202A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI TOW 3702A456613 THRU 2A530773 / 2A530774 & Up
MerCruiserMX 6.2L MPI BRAVO0L680003 THRU 0M299999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0M600000 THRU 0W059999 / 0W650000 THRU 1A299999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0M600000 THRU 0W059999 / 0W650000 THRU 1A299999 / 0M300000 THRU 0M599999
MerCruiser7.4L BRAVO (MPI)(GEN. VI) GM 454 V-80L010003 THRU 0M024330
MerCruiser8.2L Mag (Base Model)1A351597 & Up
MerCruiser8.2L Mag (H.O. Model)1A351597 & Up
MerCruiser8.2L Mag EC (Base Model)1A350340 THRU 2A041664 / 2A051742 THRU 2A051742 / 2A041665 THRU 2A051741 / 2A051743 & Up
MerCruiser8.2L Mag EC (H.O. Model)1A350340 THRU 2A041664 / 2A051741 THRU 2A051741 / 2A041665 THRU 2A051740 / 2A051742 & Up
MerCruiser350 MAG MPI ALPHA/BRAVO0L331599 THRU 0M299999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 1A300000 THRU 1A611927 / 0M600000 THRU 0W059999 / 0W650000 THRU 1A299999 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0M600000 THRU 0W059999 / 0W650000 THRU 1A299999 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser350 MPI ALPHA1G400000 THRU 1G499999
MerCruiser350 MPI Alpha/Bravo1G700000 THRU 1G799999
MerCruiser350 MPI BRAVO1G400000 THRU 1G499999
MerCruiser357 Alpha 4V1G400000 & Up
MerCruiser357 Mag Bravo 4V1G400000 THRU 1G499999
MerCruiser377 MAG MPI BRAVO1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser377 MAG MPI BRAVO EC1A343300 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiserScorpion 377 Sterndrive0L416146 THRU 0M907201
MerCruiser383 Mag Bravo 4V1G480748 THRU 1G499999
MerCruiser383 MAG STROKER BRAVO1G400000 THRU 1G499999
MerCruiser383 MPI FWC Bravo1G700000 THRU 1G799999
MerCruiser383 STROKER SCORPION BRAVOAll & Up
MerCruiser385 Performance Tuned1G400000 THRU 1G499999
MerCruiser409 MPI FWC Bravo1G704743 & Up
MerCruiser454 MAG MPI BRAVO (GEN VI) GM 454 V-80L085400 THRU 0M024999
MerCruiser502 MAG. MPI BRAVO (GEN VI) GM 502 V-80L085433 THRU 0M024999
MerCruiser5200M970122 & Up
MerCruiser5400M970866 & Up



Equivalent manufacturer part numbers

Manufacturer/BrandReference/Part Number
MerCruiser861578, 8M0150723 ✓ (actual)
