Crankshaft seal for MerCruiser 3.0L, 4.3L, 5.0L and 5.7L, and Volvo Penta 3.0GXI, 4.3GIPN, 5.7GIPM, AQ and BB series engines. The seal closes the oil passage at the crankshaft outlet, protecting the lubrication system against leaks. Also valid for OMC/Johnson/Evinrude.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.
CRANKSHAFT SEAL 3853341
REC3853341
€7.53
Tax included
Crankshaft seal for MerCruiser 3.0L, 4.3L, 5.0L and 5.7L, and Volvo Penta 3.0GXI, 4.3GIPN, 5.7GIPM, AQ and BB series engines. The seal closes the oil passage at the crankshaft outlet, protecting the lubrication system against leaks. Also valid for OMC/Johnson/Evinrude.
Description

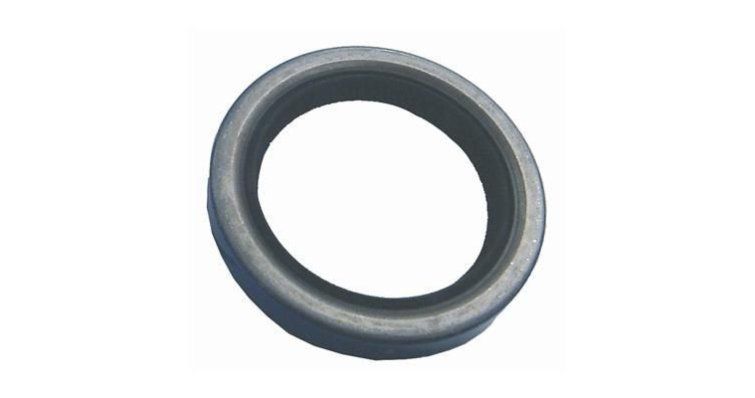

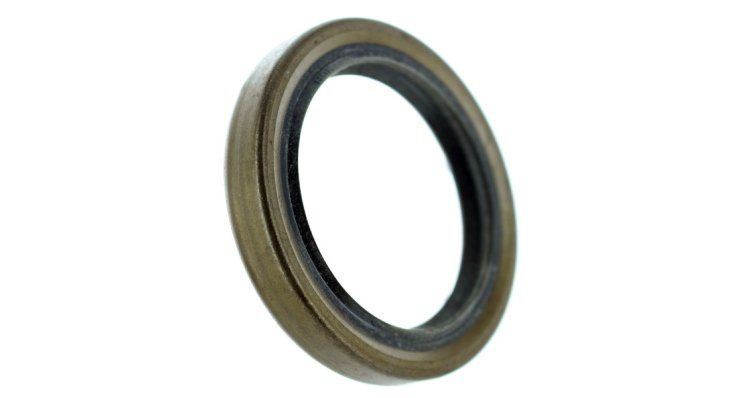

Crankshaft Seal 3853341 REC3853341 for Marine Engines
The 3853341 crankshaft seal is a critical sealing component in marine petrol engines. This seal prevents oil leakage from the engine block to the outside, maintaining the integrity of the lubrication system and avoiding environmental contamination in nautical environments. Compatible with a wide range of Volvo Penta, Mercury Marine and OMC/Johnson/Evinrude engines with powers between 2.5 and 5.7 liters of displacement.
Marine Engine Compatibility
Compatible Volvo Engines
| Series | Models |
|---|---|
| AQ Series | AQ205A, AQ211A, AQ231A, AQ231B, AQ271A, AQ271B, AQ271C, AQ271D, AQ311A, AQ311B |
| BB Series | BB231A, BB261A |
| 3.0GLM Series | 3.0GLM-A, 3.0GLM-B, 3.0GLM-C |
| 3.0GLMM Series | 3.0GLMMDA |
| 3.0GLP Series | 3.0GLP-A, 3.0GLP-B, 3.0GLP-C, 3.0GLP-D, 3.0GLP-E, 3.0GLP-J, 3.0GLP-N |
| 3.0GSM Series | 3.0GSM-A, 3.0GSM-B, 3.0GSM-C |
| 3.0GSMB Series | 3.0GSMBYMCE |
| 3.0GSML Series | 3.0GSMLKD |
| 3.0GSMN Series | 3.0GSMNCS |
| 3.0GSMW Series | 3.0GSMWTR |
| 3.0GSP Series | 3.0GSP-A, 3.0GSP-B, 3.0GSP-C |
| 3.0GSPB Series | 3.0GSPBYMCE |
| 3.0GSPE Series | 3.0GSPEFS |
| 3.0GSPL Series | 3.0GSPLKD |
| 3.0GSPM Series | 3.0GSPMDA |
| 3.0GSPN Series | 3.0GSPNCS |
| 3.0GSPW Series | 3.0GSPWTR |
| 3.0GXIC Series | 3.0GXIC-J |
| 3.0GXI Series | 3.0GXI-J |
| 4.3GIPN Series | 4.3GIPNCACE, 4.3GIPNCMCE |
| 4.3GLMM Series | 4.3GLMMDA |
| 4.3GLPM Series | 4.3GLPMDA |
| 4.3GLPN Series | 4.3GLPNCA |
| 4.3GSPN Series | 4.3GSPNCA, 4.3GSPNCM |
| 4.3GSJN Series | 4.3GSJNCS |
| 4.3GSPM Series | 4.3GSPMDA |
| 5.7GLPM Series | 5.7GLPMDA |
| 5.7GIIM Series | 5.7GIIMDA |
| 5.7GIPH Series | 5.7GIPHUS |
| 5.7GIPM Series | 5.7GIPMDA, 5.7GIPMDACE |
| 5.7GIPN Series | 5.7GIPNCACE, 5.7GIPNCMCE |
| 5.7GLIM Series | 5.7GLIMDA |
| 430 Series | 430, 430A, 430B |
| 431 Series | 431A, 431B |
| 432 Series | 432A |
| 434 Series | 434A |
| 500 Series | 500A, 500B |
| 501 Series | 501A, 501B |
| 570 Series | 570, 570A |
| 571 Series | 571A |
| 572 Series | 572A |
| 740 Series | 740B |
| DP Series | DP-A, DP-A2, DP-C, DP-C1, DP-D, DP-D1 |
| SP Series | SP-A2, SP-C, SP-C1 |
| MS Series | MS4B |
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| MerCruiser | 2.5L GM 153 I/L4 | 0B531854 THRU 0C856558 |
| MerCruiser | 3.0L GM 181 I/L4 | 0B450801 THRU 0C856558 / 0L097000 THRU 0W301999 / 0L010042 THRU 0L096999 / 0C856559 THRU 0F353099 / 0W302000 THRU 1A0019999 / 1A002000 THRU 1A020543 / 1A020544 & Up |
| MerCruiser | 3.0L Crate Engine | 1G800000 THRU 1G899999 |
| MerCruiser | 3.0L MPI EC | 1A072812 & Up |
| MerCruiser | 3.0L TKS Plus | 1G404114 THRU 1G414332 / 1G700000 THRU 1G799999 |
| MerCruiser | 3.0LX GM 181 I/L4 | 0F604000 THRU 0K999999 / 0C856559 THRU 0F603999 |
| MerCruiser | 4.3L (2 BBL.) GM 262 V-6 | 0B773243 THRU 0D714106 |
| MerCruiser | 4.3L (GEN II) (2 BBL.) GM 262 V-6 | 0D714107 THRU 0F000877 / 0F000878 THRU 0F601126 / 0F601127 THRU 0F802999 |
| MerCruiser | 4.3LX (4 BBL.) GM 262 V-6 | 0B775130 THRU 0D714369 |
| MerCruiser | 4.3LX (GEN II) (4 BBL.) GM 262 V-6 | 0D714370 THRU 0F001219 / 0F001220 THRU 0F601126 / 0F601127 THRU 0F802999 |
| MerCruiser | 5.0L (2 BBL.) GM 305 V-8 | 0B774445 THRU 0F600999 |
| MerCruiser | 5.0L MIE (4 BBL.) GM 305 V-8 | 0B522506 THRU 0B788151 |
| MerCruiser | 5.0LX (4 BBL.) GM 305 V-8 | 0B773740 THRU 0F600999 |
| MerCruiser | 5.7L GM 350 V-8 | 0B525982 THRU 0F600999 |
| MerCruiser | 5.7L MIE GM 350 V-8 | 0B788197 THRU 0F024999 |
| MerCruiser | 5.7L ALPHA EFI (TBI) GM 350 V-8 | 0F355305 THRU 0F752389 |
| MerCruiser | 5.7L BRAVO EFI (TBI) GM 350 V-8 | 0F225560 THRU 0F752399 |
| MerCruiser | 5.7L COMPETITION SKI GM 350 V-8 | 0B514627 THRU 0F775199 |
| MerCruiser | 5.7L MIE GM 350 V-8 | 0F025000 THRU 0F622099 / 0F622151 THRU 0F746099 |
| MerCruiser | 120 GM 153 I/L4 | 6229718 THRU 0B531853 / 5192049 THRU 6229717 |
| MerCruiser | 140 GM 181 I/L4 | 6229718 THRU 0B450800 |
| MerCruiser | 175 (2 BBL.) GM 262 V-6 | 0B527955 THRU 0B773242 |
| MerCruiser | 185 (2 BBL.) GM 262 V-6 | 0A331455 THRU 0B527954 |
| MerCruiser | 200 (2 BBL.) GM 305 V-8 | 6218462 THRU 0B525981 / 0B525982 THRU 0B774444 |
| MerCruiser | 205 (4 BBL.) GM 262 V-6 | 0A331455 THRU 0B527954 / 0B527955 THRU 0B775129 |
| MerCruiser | 228 (4 BBL.) GM 305 V-8 | 5170009 THRU 6218461 / 6218462 THRU 0B525981 |
| MerCruiser | 228 MIE (4 BBL.) GM 305 V-8 | 5170009 THRU 5907057 |
| MerCruiser | 230 (4 BBL.) GM 305 V-8 | 6218462 THRU 0B525981 / 0B525982 THRU 0B773739 |
| MerCruiser | 230 MIE (4 BBL.) GM 305 V-8 | 0B522506 THRU 0B788151 / 5907058 THRU 0B522505 |
| MerCruiser | 260 (4 BBL.) GM 350 V-8 | 4908850 THRU 6218461 / 6218462 THRU 0B525981 / 0B525982 THRU 0B773739 |
| MerCruiser | 260 MIE GM 350 V-8 | 0B522506 THRU 0B788196 / 5907058 THRU 0B522505 |
| MerCruiser | 350 (4 BBL) Gen+ Crate Engine | ALL & Up |
| MerCruiser | 350 (4BBL) Crate Alpha | 1G800000 THRU 1G899999 |
| MerCruiser | 350 (4BBL) Crate Bravo | 1G800000 & Up |
| MerCruiser | 350 (4BBL) Crate Inboard | 1G800000 & Up |
| MerCruiser | 350 Alpha (4 BBL) Crate Engine | ALL & Up |
| MerCruiser | 350 MAG. ALPHA (4 BBL.) GM 350 V-8 | 0A635178 THRU 0B525981 / 0B525982 THRU 0F600999 |
| MerCruiser | 350 MAG. BRAVO MPI GM 350 V-8 | 0F415189 THRU 0F601999 |
| MerCruiser | 350 MAG. MPI SKI GM 350 V-8 | 0F350583 THRU 0F799999 |
| MerCruiser | 357 Alpha 4V | 1G400000 & Up |
| MerCruiser | 357 Mag Bravo 4V | 1G400000 THRU 1G499999 |
| MerCruiser | 383 Mag Bravo 4V | 1G480748 THRU 1G499999 |
| MerCruiser | 898 (2 BBL.) GM 305 V-8 | 6218462 THRU 0B525981 |
Equivalent Manufacturer Part Numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury/MerCruiser | 3853341, 11973, 26-97335, 36-97335, 42750, 54799, 59341A1, 79223, 8M0137024, 97335, (actual), FI1101076, FI1101263 |
| Volvo | 3853341, 856665 |
| OMC | 0508990, 3853341 |
Crankshaft Seal Technical Specifications
This crankshaft seal is designed to provide a hermetic seal in the crankshaft outlet area, preventing lubricant losses to the outside of the engine. Its function is essential to maintain the correct oil pressure inside the block and prolong the life of the internal engine components. The piece acts as a barrier between the lubricated area and the outside, protecting it from the entry of water and contaminants typical of the marine environment.
Compatible Volvo Penta Engine Families
This seal is compatible with multiple series of Volvo Penta engines, including AQ series (AQ205A, AQ211A, AQ231A, AQ231B, AQ271A, AQ271B, AQ271C, AQ271D, AQ311A, AQ311B), BB series (BB231A, BB261A), and 3.0 and 3.0 family engines. 4.3 in all its injection and displacement variants. It is also compatible with 5.7-liter power in petrol configuration for inboard and drive applications.
Applications in Mercury/MerCruiser Engines
For Mercury Marine and MerCruiser systems, this seal is compatible with 2.5L, 3.0L, 3.0LX, 4.3L, 4.3LX, 5.0L, 5.0LX, 5.7L engines and their MPI, EFI and Crate Engine variants. Includes compatibility with historical models such as the 120, 140, 175, 185, 200, 205, 228, 230, 260, 350 series and SKI competition models.
OMC/Johnson/Evinrude Compatibility
The seal is also compatible with outboard motors and inboard systems from OMC, Johnson and Evinrude that share the equivalent crankshaft architecture.
Compatibility Check
At Marine Parts we know that nautical life does not allow mistakes. If you have doubts about whether this spare part is suitable for your engine, we recommend that you verify the serial number of your engine block by consulting the technical documentation of your boat or by contacting our specialized team.
? Related Volvo Penta Spare Parts
If you are maintaining or repairing your Volvo Penta engine, these spare parts may also interest you:
- Cylinder Head Gasket 2.5 3.0 52364 27-810841Category: Engine Gaskets 3.0 GS Volvo Penta
- Exhaust Manifold Gasket 3.0 27-815528Category: 3.0 4L
- Original Volvo Petrol Filter 3862228Category: Volvo Penta Petrol Filters
- Omc Volvo Thermostat Kit 3856961 160ºCategory: Volvo Penta Petrol Engine Thermostats
- Valve Retainer 26-34217Category: Volvo Penta Valve Seals
