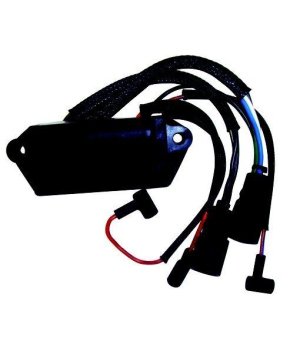

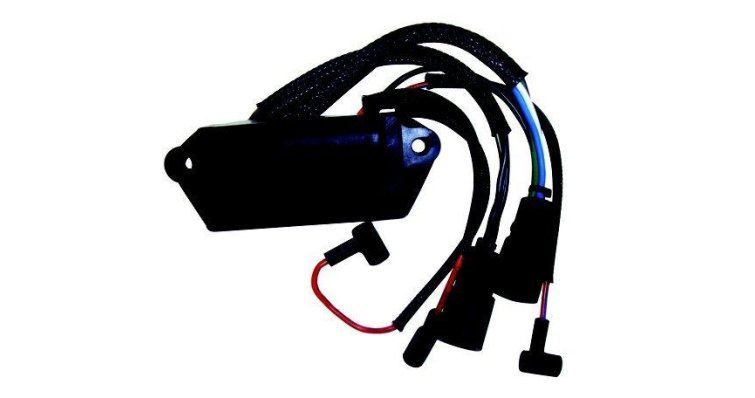

Black Box 583122 0583320

Function and Technical Context

The black box is the electronic control module of the ignition system in OMC outboard motors, responsible for managing CDI system signals (capacitor discharge ignition) to ensure proper spark firing in each cylinder. It operates in the electronic ignition system, receiving signals from the stator and trigger module to calculate and execute ignition timing with precision. A failure in this component causes total or partial loss of ignition, with symptoms ranging from erratic starting to complete inability to start the engine. Its correct operation is essential to maintain power, fuel consumption efficiency and reliability of the propulsion unit while underway.

When to Replace This Part?

The most common symptoms of failure in an ignition black box include intermittent ignition failures in one or several cylinders, sudden loss of power at certain RPM, engine that shuts down suddenly and fails to restart, or absent spark confirmed after ruling out coils and spark plugs in good condition. Being an electronic component with no moving parts, it has no preventive replacement interval by hours, but inspection and testing is recommended at each seasonal service, especially if the engine has accumulated years of service or has been exposed to moisture or intense vibrations. Replacing the black box at the first signs of failure prevents loss of propulsion at sea and eliminates at the root the most frequent cause of ignition failures in OMC outboards of this range.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
