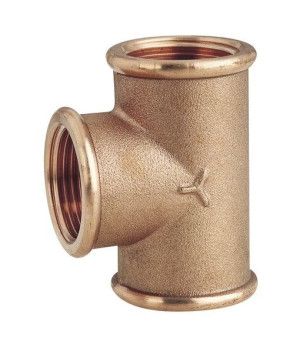

F/F/F Pipe Tee Naval Bronze 1 1/4"

Function and technical context

This naval bronze T-junction with three female threaded mouths (pipe tee F.F.F.) is used in marine plumbing installations to divide or gather flows in seawater, fresh cooling water, bilge or sanitary services circuits on board. The naval bronze alloy guarantees superior corrosion resistance in saline environments, making it the usual technical choice over ferrous materials or low-density polymers when the installation is subjected to continuous pressure or engine vibrations. By distributing the flow to three branches with 1 1/4" female thread, it allows pipes, hoses or valves from different circuits to be integrated into a single connection node, simplifying the hydraulic layout and reducing independent sealing points. A failure in this part - due to cracking, galvanic corrosion or damaged thread - can cause leaks in the affected circuit, with the consequent risk of water entering the hull, loss of pressure in the cooling system or flooding of the machinery compartment.

When to replace this part?

The most common symptoms that indicate the need to replace a bronze T-branch are: presence of verdigris or whitish deposits around the threads, visible water oozing from the joints, worn or deformed threads that prevent correct tightening, and superficial pitting that thins the wall of the fitting. In saltwater installations it is advisable to visually inspect all brass fittings at each seasonal maintenance, especially if the boat remains in the water for months. Preventively replacing a damaged T-branch before launching avoids higher cost breakdowns and, above all, the risk of a water leak during navigation.
