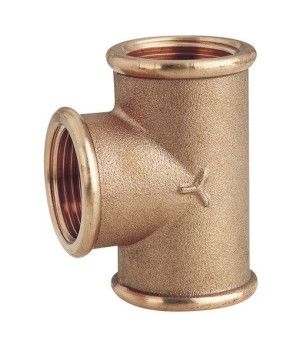

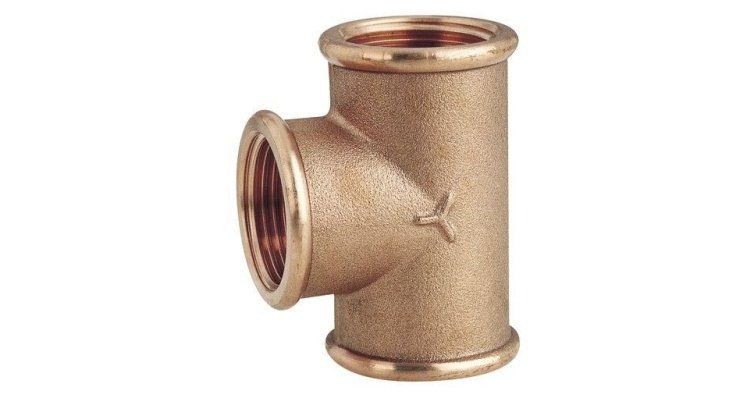

F/F/F Pipe Tee Naval Bronze 3/8"

Function and technical context

The 3/8" naval bronze female/female/female T is a marine plumbing accessory designed to divide or gather flows in on-board hydraulic installations, allowing three sections of pipes with internal thread to be connected in a single branch. It is commonly used in fresh water circuits, bilge systems, salt water installations for auxiliary cooling, low pressure fuel circuits and sea intakes, where the T branch guarantees the correct distribution of the flow without loss of tightness. Naval bronze, alloy made of marine grade copper with tin and zinc, it offers resistance to galvanic corrosion much higher than standard materials, which is essential in salt or brackish water environments where conventional steel or brass would quickly degrade. An accessory in poor condition in these circuits can cause uncontrolled leaks, water entry into the hull or loss of pressure in the affected system, with the safety consequences that this implies in navigation.

When to replace this part?

The most common symptoms that indicate that a naval bronze tee needs to be replaced are the appearance of verdigris or whitish deposits around the threads (indications of microleaks and intergranular corrosion), visible cracks in the body of the fitting, active leaks in any of the three mouths or difficulty in correctly tightening the connections due to thread wear. It is recommended that all bronze threaded fittings be inspected at each seasonal maintenance, paying special attention to joints subject to engine vibration or sudden temperature changes. Preventively replacing a cracked or severely corroded tee is a minimal-cost intervention that prevents serious breakdowns—and even emergency situations—on the high seas.

Compatibility table
