Sacrificial anode for Yamaha engines of 55 hp, 90 hp, 150 hp, 175 hp, 200 hp and 225 hp, both in 2-stroke and 4-stroke versions. Made of zinc, it protects the engine block and cooling circuit against galvanic corrosion in salt and fresh water.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

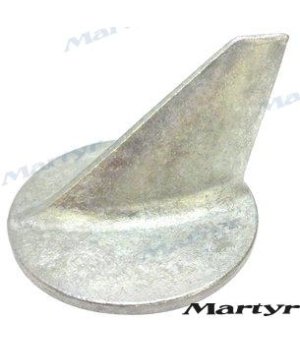

YAMAHA ANODE 55HP
CM679-45251-00
€17.28
Tax included

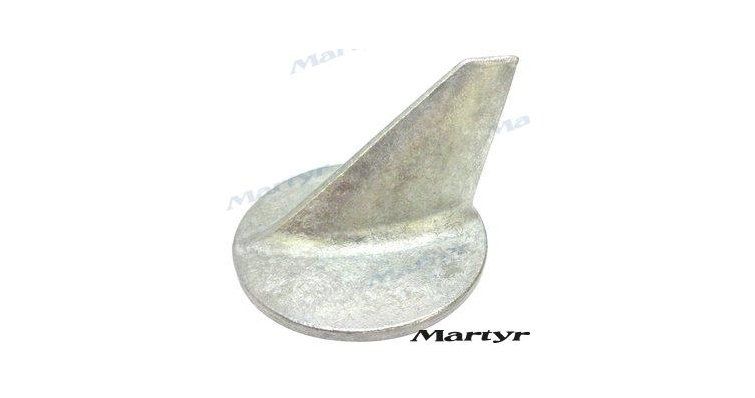

Sacrificial anode for Yamaha engines of 55 hp, 90 hp, 150 hp, 175 hp, 200 hp and 225 hp, both in 2-stroke and 4-stroke versions. Made of zinc, it protects the engine block and cooling circuit against galvanic corrosion in salt and fresh water.
Description
Function and technical context
The sacrificial anode is an essential component in the cathodic protection system of Yamaha outboard motors. Made of zinc, it corrodes in a controlled manner in place of the critical metal parts of the engine, preventing electrochemical oxidation in the fresh and salt water circuit. This process protects the engine block, cylinder head, cooling ducts and other areas exposed to galvanic corrosion. Its function is especially critical on vessels that navigate in salt water or remain at anchor for long periods, where electrochemical activity accelerates deterioration without this active protection.
When to replace this part?
The anode requires visual inspection at least once per boating season, especially if the engine operates in salt water. Advanced corrosion, visible erosion, or significant thickness loss indicate that it should be replaced before it loses its protective ability. Preventive change is recommended annually or every 100-150 hours of operation in intensive use in salt water, and every 200-300 hours in fresh water. Replacing the anode preventively avoids costly repairs to the engine block and extensions of the crankshaft resulting from deep corrosion that could render the engine unusable in navigation.
Yamaha Engine Compatibility
Motores Yamaha Compatibles▾
Modelo Años 150A 1986 – 2013 150C 1990 – 1995 150F 1996 – 2013 150G 1997 175A 1986 175B 1990 – 1995 175D 1996 – 2003 175F 1997 200A 1986 – 2009 200B 1991 – 1995 200C 1992 – 1993 200E 1990 200F 2002 – 2012 225C 1994 – 1995 225F 2003 225G 1999 – 2003 250A 1991 – 2006 250B 1997 – 2003 250E 1990 250G 2006 – 2010 25B 1994 – 1995 50G 1993 – 1998 60F 1992 – 2007 60T 2004 – 2006 90A 1985 – 2012 90T 1993 – 2010 E60H 1997 E60H Enduro 1996 – 2012 E75B 2008 E75B Enduro 2009 – 2012 F13.5A 2002 – 2006 F13.5A 4-STROKE 2007 F15 2005 F15A 2001 – 2006 F15A 4-STROKE 2007 F15P 2004 – 2006 F200A 2002 – 2007 F200B 2006 – 2018 F200C 2006 – 2018 F225A 2002 – 2007 F225C 2009 – 2015 F225H Counter Rotation 2018 F225T 2004 – 2006 F225X 2018 F40 2001 F40A 2001 – 2002 F40B 2000 – 2009 F40BB 2009 F40C 2002 F40D 2008 – 2012 F40E 2001 – 2005 F40M 2001 F40T 2001 F50A 1996 – 1998 F50F 2006 – 2008 F50H 2018 – 2019 F50T 2005 – 2006 FT50B 1996 – 2000 LZ250D 2004 – 2006 LZ250D 2-STROKE, Counter Rotation 2007 LZ250D Counter Rotation 2005 LZ250D Left Hand 2003 LZ300A 2004 LZ300A 2-STROKE, Counter Rotation 2007 LZ300T 2005 LZ300T Counter Rotation 2006 Z250D 2003 – 2006 Z250D 2-STROKE 2007 Z250F 2003 – 2006 Z250F 2-STROKE 2007 Z300A 2004 Z300A 2-STROKE 2007 Z300T 2005 – 2006
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Motor | 55 |
| hp Peso | 0, 56 |
| kg Tipo | BOLSA, CM61A-45371, DESCRIPCIÓN, MODELO, MOTOR, PESO, PRODUCTOS, REFERENCIA, SIMILARES, TIPO, UNIDADES, X, ZN |
| ANODO YAMAHA YAMAHA | 0, 08KG, 225FET, 250, 250AET, 250BET, 4T., 55, 61A-45371-00, 63KG, 66M-45371-00, 9.9, ANODO, CM66M-45371-00, CM679-45251-00, F, F13.5, F15, F9.9, F9.9C, HP, INFO, L250AET, YAMAHA, ZN |
| HP YAMAHA | 0, 1, 115, 150, 150/, 150XSR, 17KG, 19KG, 200, 20KG, 21KG, 225, 40XS-XRS, 42KG, 48KG, 50, 50KG, 52KG, 55, 56KG, 60, 679-45251-00, 67C-45371-00, 688-45371-02, 688-45371-02-00, 69L-45371-00, 6J9-45371-01, 6J9-45371-02, 6K1-45371-00, 75CETOL/TLR(B)/C’08/TL, 80AEO/AETO/A/AEMTO, 85A/AEO/TLR/AE, AL, ALUMINIO, ANODO, CM67C-45371-00, CM688-45371-02, CM688-45371-02A, CM69L-45371-00, CM69L-45371-00A, CM6J9-45371-01, CM6J9-45371-01A, CM6K1-45371-00, CM6K1-45371-00A, CM6K1-45371-02, CM6K1-45371-02A, CM6T5-45371-00, COLA, DORADO, EFI, F150A/T/B/D, F175A/C, F200F/G, F25-40-50-60, FUERABORDA, HP, INFO, KILLER, TIMON, V6), WHALE, XS&XSR, YAMAHA, ZINC, ZN |
Product Details
CM679-45251-00
