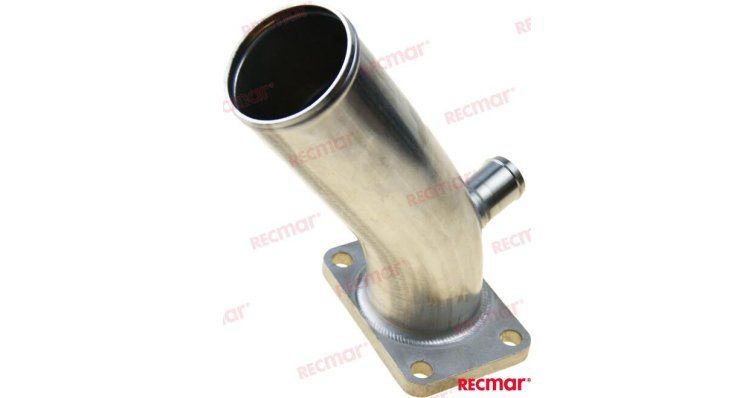

INOX Exhaust Elbow

Function and technical context

The stainless steel exhaust elbow is part of the cooling and gas evacuation system in small marine diesel engines. Its main function is to mix the cooling water with the exhaust gases from the collector, cooling the gas outlet before it is expelled outside the boat - hence its technical name in English "mixing elbow". As it is a point of confluence between the salt water circuit and the hot gases, this component is subject to aggressive corrosion and continuous thermal cycles; If it fails or becomes clogged, the exhaust gases are no longer properly cooled, with the consequent risk of damage to the exhaust hose, the muffler and even the entry of hot gases into the bilge. The stainless steel manufacturing gives it much higher corrosion resistance than cast iron elbows, especially in salt water environments.

When to replace this part?

The most common symptoms of deterioration of the exhaust elbow are the appearance of limescale or rust deposits at the junction with the manifold, water leaks through cracks in the body of the elbow, excessive smoke or exhaust gases with abnormally high temperatures, and irregular bubbling noises in the exhaust line. It is recommended to visually inspect the elbow during each seasonal maintenance and replace it if there is any sign of advanced corrosion, thinning of walls or cracks, without waiting for a breakdown to occur while sailing. Replacing this component preventively is the most economical decision compared to the secondary damage that a failure can cause in the middle of the journey.
