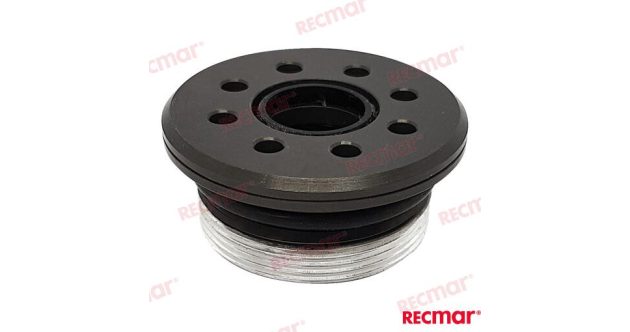

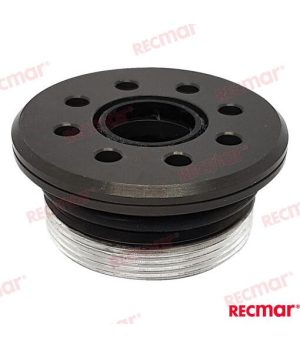

TAPON PISTON TILT

Function and technical context

The tilt piston plug is an essential sealing component of the tilt and tilt system in outboard engines, responsible for hermetically closing the oil chamber of the tilt cylinder. Its main function is to maintain the tightness of the hydraulic circuit, preventing leaks of working fluid and preventing the infiltration of seawater and contaminants into the tilting system. Without efficient sealing at this point, the engine loses the ability to generate and maintain the hydraulic pressure necessary to execute smooth and controlled tilting movements, in addition to being exposed to the accelerated corrosion characteristic of the saline environment. The integrity of this plug is essential to ensure that the operator has a reliable response in the tilt command at all times, especially in delicate navigation maneuvers or in shallow water areas.

When to replace this part?

The tilt piston plug requires immediate inspection when visible oil leaks are observed in the tilt cylinder area, hesitant or significantly slower movements in the tilt control response, or signs of water emulsified in the hydraulic fluid, all symptoms that the seal has been compromised. It is recommended to inspect the condition of the plug during each seasonal maintenance and replace it preventively if signs of wear, cracks, deformation or hardening of the material are seen, since a failure in the seal can trigger cascading breakdowns of the entire hydraulic system and the functional loss of the tilt during navigation. The timely replacement of this component avoids costly interventions and guarantees the operation of the engine throughout the navigation campaign.
