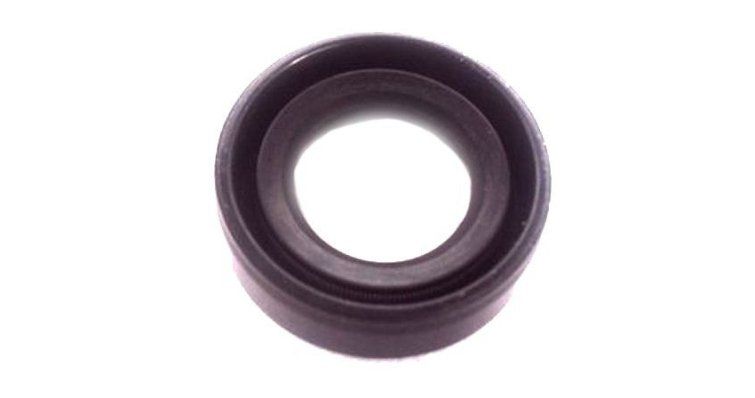

LOWER SEAL VERTICAL SHAFT 93101-22M60

Function and technical context

The lower vertical shaft seal is a critical sealing component in the vertical transmission of Yamaha engines, located in the interface area between the shaft and the stern drive housing. Its main function is to prevent the infiltration of salt water and lubricant into the transmission system, maintaining the tightness of the assembly. This seal works under continuous rotation and variable hydrostatic pressure, being essential to preserve the integrity of the transmission lubricant and prevent internal corrosion of gears and bearings. A failure in this seal compromises the useful life of the entire stern unit, and may cause loss of lubricant, entry of seawater and irreversible damage to the internal mechanical elements.

When to replace this part?

Signs of wear on vertical seals include progressive loss of lubricant in the transmission, presence of water in the casing oil or milky emulsion, and in advanced cases, rubbing noises or abnormal vibration in the shaft. It is recommended to inspect the condition of the seal during each seasonal maintenance, especially after prolonged navigation in salt water or in conditions of thermal stress. Preventive replacement is highly recommended if signs of moisture are observed or if the boat has accumulated more than 500-600 hours of operation since the last complete transmission overhaul, thus avoiding costly repairs and unplanned shutdowns at sea.
