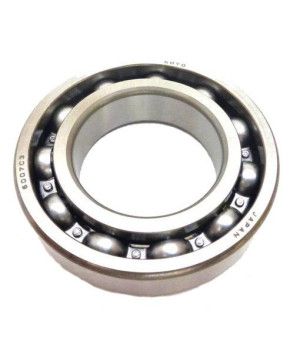

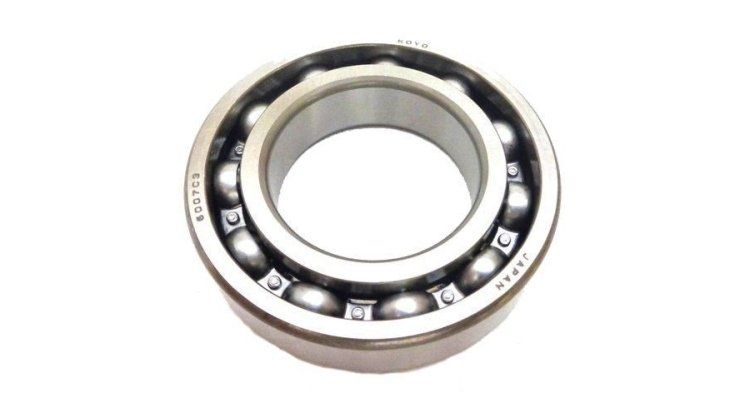

REVERSE PINION BEARING 93306-00702

Function and technical context

The reverse gear bearing is a critical component of the Yamaha and Mercury marine engine drive system, responsible for supporting and guiding the rotation of the reverse gear during reverse maneuvers. Housed in the tail casing, it works under constant load during reverse operations, supporting radial and axial forces generated by the rotation reversal of the propeller. Its wear or deterioration compromises the precision of the gear, generating excessive vibration, abnormal mechanical play and, in advanced cases, loss of directional control or blocking of reverse gear.

When to replace this part?

Typical symptoms of this bearing failure include clunking or chattering noises from the tail during reverse, unusual vibration when shifting into reverse, and excessive pinion movement that can be detected by manually manipulating the transmission. It is recommended to check its condition during each seasonal maintenance, especially after intensive operations in salt water or after minor collisions. Preventatively replacing this bearing before wear affects the gear prevents costly transmission repairs and ensures safe maneuvering in demanding boating conditions.

Equivalent manufacturer part numbers
