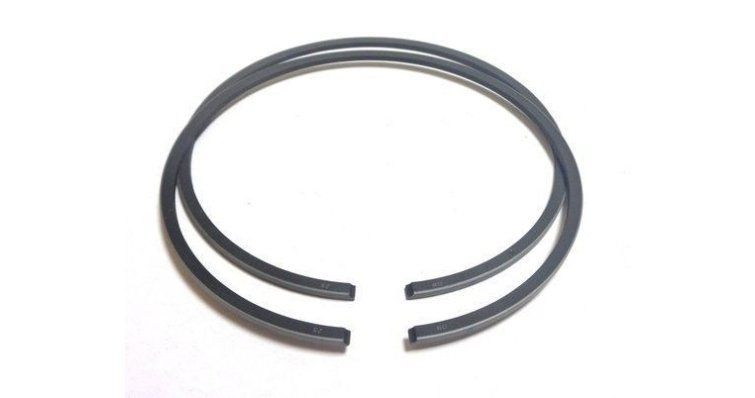

STD SEGMENT KIT 63D-11603-00

Function and technical context

The rings are critical components of the engine's compression and sealing system, located in the piston grooves to control combustion pressure and regulate the passage of oil into the combustion chamber. In standard-size Yamaha engines, these segments work under extreme temperature and pressure conditions, guaranteeing the necessary sealing to maintain combustion efficiency and prevent gas leaks into the crankcase. A deterioration in the rings causes loss of compression, excessive oil consumption and a significant decrease in engine power.

When to replace this part?

The rings require replacement when bluish smoke is detected in the exhaust (indicative of oil passage), loss of compression measured in specific cylinders, or unstable idle with abnormal lubricant consumption. This type of part wears out progressively during the life of the engine; It is recommended to check its condition during each seasonal maintenance and plan its replacement during a complete piston check. Replacing them preventively during major engine maintenance avoids secondary damage to cylinders and costly repairs in emergency navigation situations.

Equivalent manufacturer part numbers
