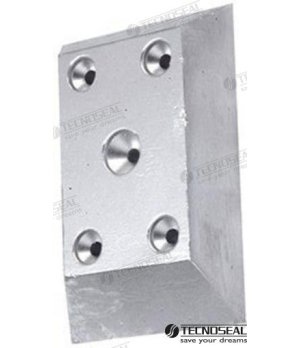

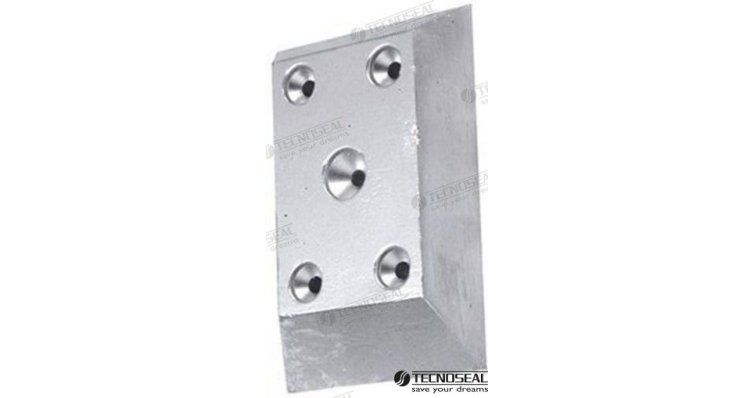

ANODE POSILLIPO 122x81x20

Function and technical context

Sacrificial anodes such as the Posillipo 122x81x20 are part of the boat's cathodic protection system, acting as an electrochemical barrier between the metals of the structure and salt or brackish water. This anode is installed directly on the hull or submerged metal elements, attracting galvanic corrosion to itself and protecting them from progressive oxidation. Without adequate anodic protection, propellers, shafts, rudder anodes and metal hull surfaces suffer accelerated wear that can compromise the structural integrity and hydrodynamic performance of the vessel. The correct choice of the anode in terms of dimensions – 122 mm long, 81 mm wide and 20 mm thick – guarantees the necessary protective coverage for the metal surfaces to which it is associated.

When to replace this part?

The clearest indicator that a sacrificial anode must be replaced is the loss of more than 50% of its mass, which visually translates into an eroded piece, with irregular edges and an obvious reduction in volume with respect to its initial size. It is recommended to inspect and replace the anodes at least once per nautical season or coinciding with the annual docking of the boat, since a depleted anode leaves adjacent metals unprotected against galvanic corrosion. Replacing the anode preventively at each grounding is the most cost-effective practice in the long term: it avoids costly damage to propellers, shafts and hulls that can result in major repairs in the workshop or, in the worst case, a breakdown afloat.
