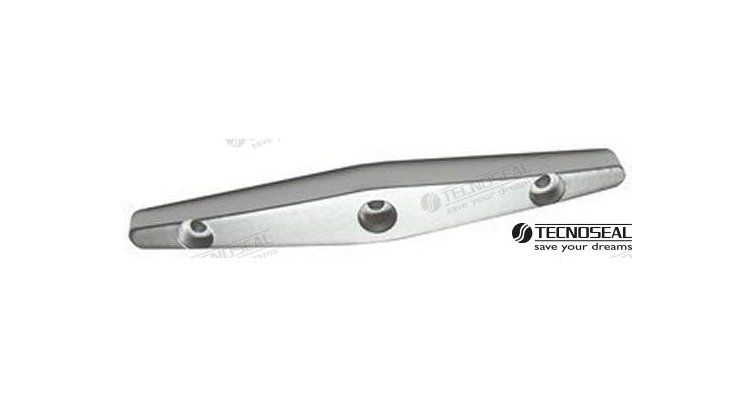

OVAL ANODE GALEON 210x29x20

Function and technical context

This oval zinc anode for Galéon boats acts as sacrificial cathodic protection of the hull and submerged metal elements, preventing galvanic corrosion that can irreversibly damage propellers, shafts, rudders and other alloy components in contact with sea or brackish water. Being made of high-purity zinc, the anode corrodes in a controlled manner instead of the noble metals of the vessel, being the element that is "sacrificed" to preserve the structural integrity of the assembly. Its dimensions of 210x29x20 mm in oval format make it especially suitable for the mounting areas provided for the Galéon range hulls, guaranteeing an optimal display surface for effective protection throughout the sailing season.

When to replace this part?

The clearest symptom that the anode has exhausted its useful life is the visible reduction in its mass: when it has lost approximately 50% of its volume, it no longer offers sufficient protection and must be replaced immediately. Hull anodes should be inspected at least once a season, ideally at the annual beaching, and replaced whenever they show excessive wear, cracks, or a smooth surface without active roughness. Replacing the anode preventively at each annual tune-up is the most economical measure to avoid corrosion damage to high-cost parts such as shafts or propellers, which are considerably more expensive to repair or replace.

Compatibility table
