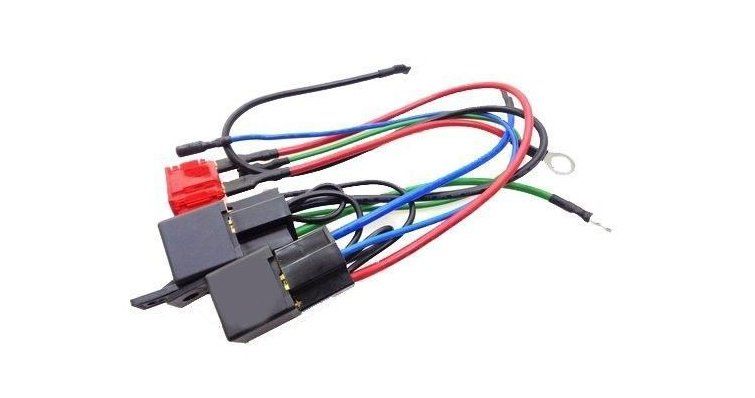

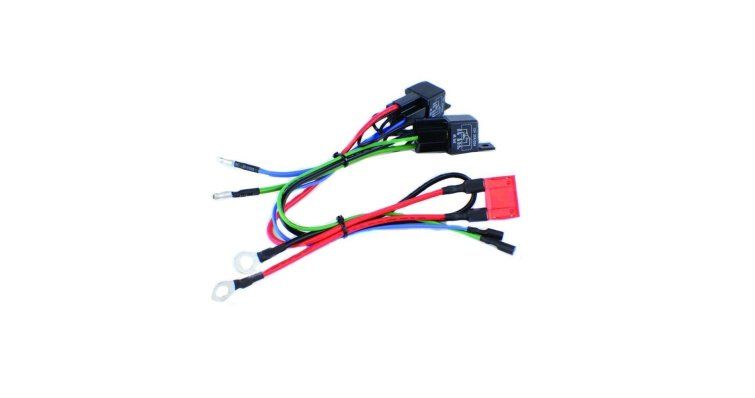

3-2 Wire Harness Converter PH200-WH01

Function and technical context

The hardwired converter PH200-WH01 acts as an adaptation interface between control architectures with different numbers of conductors, allowing control systems designed with three wires to function correctly with two-wire configurations on outboard marine engines and stationary motors. This device operates within the steering and throttle circuit, ensuring that control signals are transmitted with fidelity between the control station and the propulsion unit. Its function is especially relevant in control station replacements, console upgrades, or installations with components from different generations, where incompatibility of wiring standards may prevent proper throttle operation or gear shifting. Without this adapter, a mismatch in the connector pinout would cause erratic response in the control lever, loss of control over engine speed, or even the inability to start the propulsion unit.

When to replace this part?

The most common symptoms indicating the need to inspect or replace the wiring converter include erratic or intermittent control lever response, sporadic loss of throttle signal, and unpredictable engine speed behavior despite no faults being detected in the control box or the propulsion unit itself. It is recommended to inspect this component at each seasonal maintenance, paying special attention to the condition of the connectors and the insulation of the conductors, which may deteriorate due to moisture and salt corrosion inherent to the marine environment. Preventively replacing the adapter at any sign of control circuit failure avoids losing engine control while underway, a risky situation that results in emergency repairs costing far more than the part itself.

Engine Compatibility

Equivalent manufacturer references
