36120-ZW4-H12 TRIM MOTOR

Function and technical context

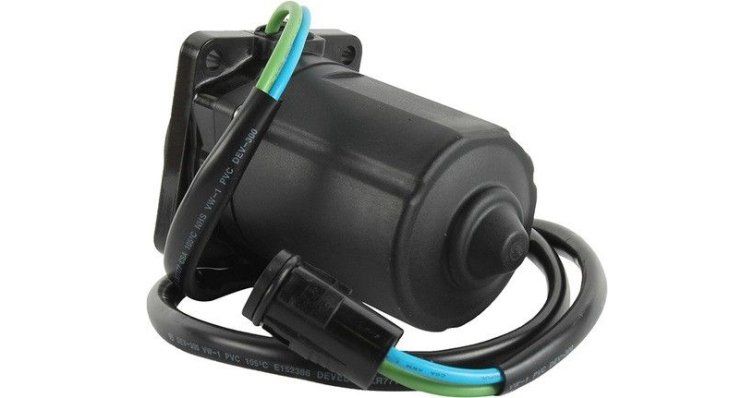

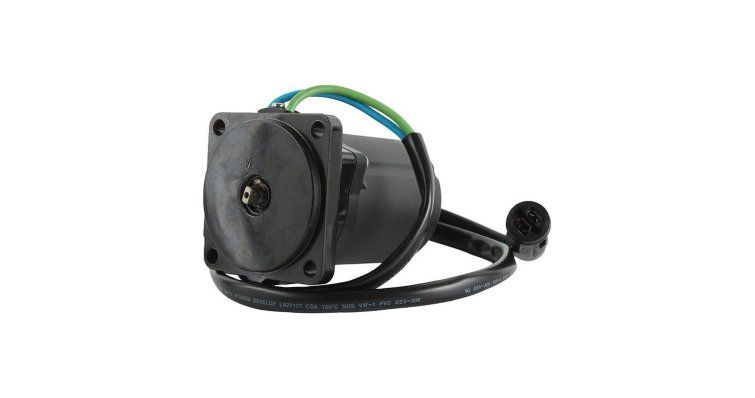

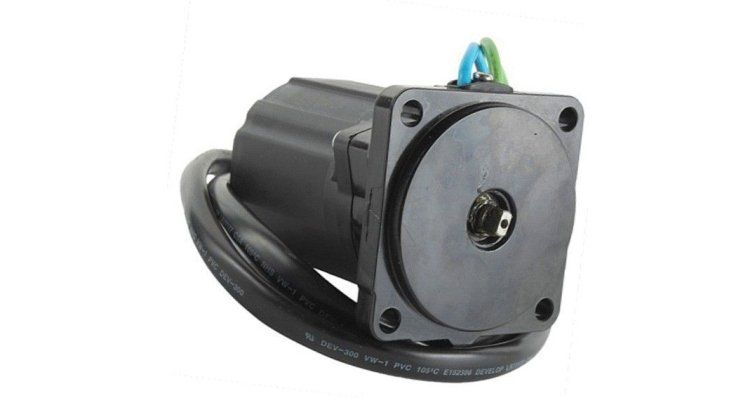

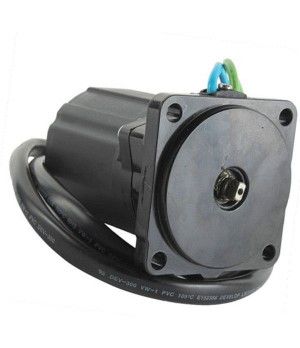

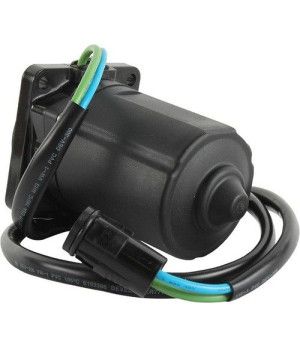

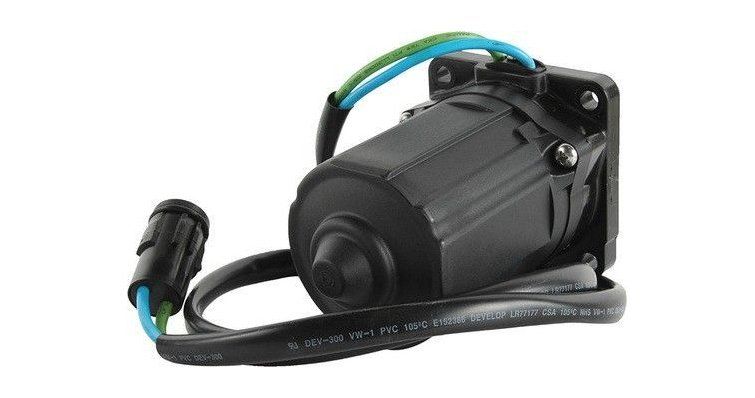

The trim motor is the electric actuator responsible for tilting and regulating the angle of the outboard motor with respect to the transom, allowing the performance of the boat to be optimized according to the navigation conditions and the load. It works within the engine's hydraulic-electric trim and trim system, converting the electrical signal from the push button into mechanical movement to raise or lower the unit. This component has 4 fixing screws, a round connector and includes a sealing ring, characteristics that determine its correct adaptation to the trim assembly. A failure in this engine causes the impossibility of adjusting the angle of the propeller, which compromises both navigation performance and maneuverability and fuel consumption.

When to replace this part?

The most common symptoms of a trim motor failure are: the trim does not respond to pressing the button, the motor hums but does not move the unit, the angle adjustment is carried out slowly or intermittently, or the unit does not maintain its position and gives way under load. In outboard motors with intensive use, it is recommended to check the condition of the trim motor during each seasonal maintenance, checking the absence of corrosion in the connector and the correct sealing of the assembly. Replacing it at the first symptoms avoids being left without trim control while navigating, a situation that can be dangerous and costly to resolve on the high seas.
