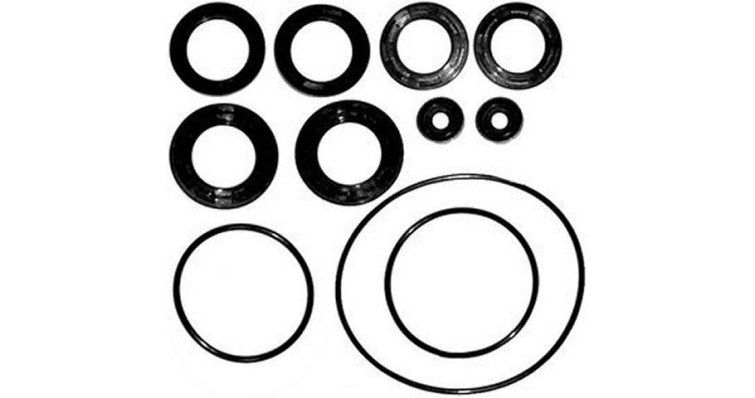

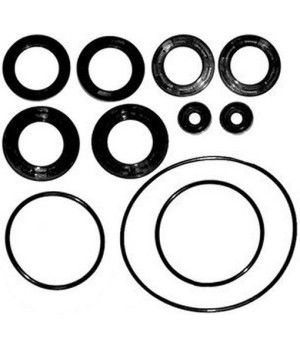

Gaskets and Seals Kit 25700-93J00

Function and Technical Context

This gasket and seal kit acts as a watertight barrier at critical points in the outboard motor's transmission and lubrication system, preventing fluid mixing and blocking seawater entry into sensitive areas of the propulsion unit. Lip seals guarantee dynamic watertightness of rotating shafts, while flat gaskets seal mating surfaces between motor bodies or covers, ensuring that oil remains confined within its circuit and does not contaminate the cooling water or vice versa. Failure of any of these elements can cause loss of oil pressure, water entry into the crankcase, accelerated corrosion of internal components and, in the most severe cases, engine seizure while underway. Periodic replacement is particularly important in engines with intensive use or operating in saltwater conditions, where elastomer and seal degradation is accelerated.

When to Replace This Component?

The most common symptoms indicating gasket and seal wear in an outboard are the presence of oil stains in the bilge or under the motor, whitish emulsion in the oil (a clear sign of water ingress), progressive loss of lubricant level with no apparent cause, and burnt smell from oil contacting hot surfaces. It is recommended to inspect and assess replacement of this kit at each seasonal service or after removing the gearbox and block for any internal work; as a general reference, many manufacturers advise renewing transmission seals every 300-500 hours or whenever the assembly is disassembled. Carrying out replacement preventively during a planned service is significantly more economical than facing a breakdown due to seal failure many miles from port.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
