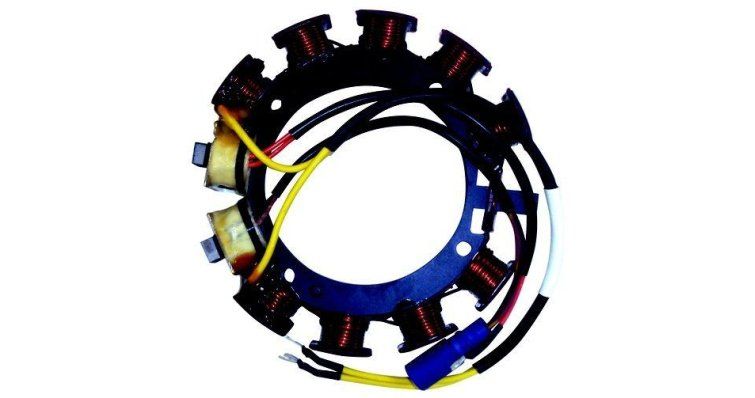

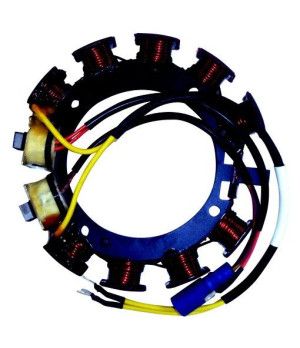

Ignition Stator 583561 0584288

Function and Technical Context

The stator is the fixed component of the charging and ignition system in OMC outboard motors, responsible for generating alternating current through electromagnetic induction when interacting with the rotating magnetic flywheel. Integrated into the ignition and battery charging circuit, it works in close collaboration with the charging coil, the regulator-rectifier and the ignition module to ensure stable electrical supply. A deteriorated stator directly compromises the charging capacity of the electrical system and can cause intermittent ignition failures or total loss of spark, leaving the engine unable to start while underway. This stator replaces OMC references 583561 and 584288, with replacement reference 0584288 being the updated version of the assembly.

When to Replace This Part?

The most common symptoms of a faulty stator include difficulty starting in cold conditions, ignition misfires at certain engine speeds, battery that will not charge, or engine stalling suddenly without apparent cause in the fuel system. Burned-out coils or resistances out of range may also be detected when performing a multimeter diagnosis on the stator connectors. It is recommended to inspect the stator at each seasonal maintenance and replace it preventively at any unexplained electrical symptom, as a failure while underway is difficult to repair on the water and can result in costly emergency towing assistance.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
