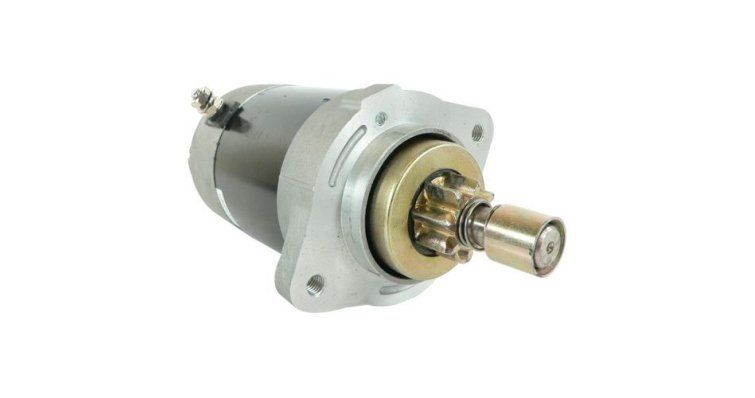

SUZUKI STARTER MOTOR 31100-87000

Function and technical context

The starter motor is the electrical component responsible for starting the outboard motor, converting energy from the battery into mechanical movement to rotate the crankshaft until the engine reaches combustion ignition. It works in the electric starting system, being activated by the solenoid and the ignition circuit each time the ignition key is turned. In high-displacement two-stroke Suzuki engines—such as those in the DT90 to DT225 series—this component must overcome the resistance of large displacement engines, so its correct operation is essential. A faulty starter motor can leave the boat inoperative at the most critical moment, since without it it is not possible to start the engine by conventional electrical means.

When to replace this part?

The most common symptoms of a starter motor in poor condition are: the engine turns slowly or irregularly when trying to start, a "click" is heard but the engine does not turn, the drive pinion does not mesh correctly with the flywheel crown, or there is no response when turning the key despite having the battery charged. In engines with intensive use or with many hours of navigation, it is advisable to check the condition of the starter during each seasonal maintenance, paying special attention to the wear of the Bendix pinion and the condition of the collector and brushes. Replacing it preventively at the first symptoms avoids being left without a starter at sea and the high costs of emergency assistance.
