Function and Technical Context

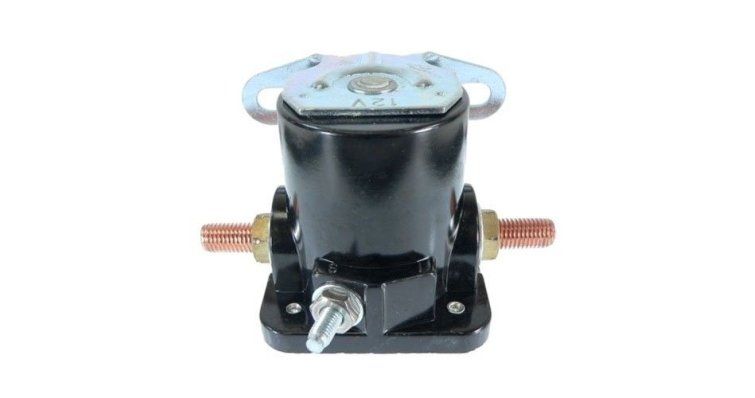

This starter and trim solenoid acts as a high-current electromagnetic switch within the electrical circuit of the outboard and stationary engine, serving a dual function: on one hand, it closes the circuit between the battery and the starter motor to ignite the engine; on the other hand, it controls the hydraulic trim and tilt system that regulates the inclination angle of the motor-propeller assembly. It operates simultaneously in the ignition system and in the hydraulic trim system, being an essential component for basic vessel operability. A faulty solenoid can prevent engine starting, lock trim adjustment during navigation, or generate intermittent failures that compromise onboard safety. It is compatible with OMC, Mercury, Mariner and MerCruiser engines, replacing references 979774, 0979774, 778021, 803822T and F177917.
When to Replace This Part?
The most common symptoms of a faulty solenoid include the engine not responding to key turn despite a charged battery, a dry click without effective starting, trim that does not raise or lower or that moves erratically and intermittently. Corrosion on electrical terminals and continuous exposure to marine moisture accelerate the deterioration of this component, so it is recommended to inspect the solenoid at each seasonal maintenance. Replacing it preventively at the first symptoms avoids being left without starter or trim control while underway, with the cost and risk that this entails.
| Series | Models |
|---|---|
| Otros | 115ESL74B 1974, 115ESL75E 1975, 115ETL74B 1974, 115ETL75E 1975, 135443B 1974, 135483B 1974, 135489B 1974, 135543E 1975, 135583E 1975, 135589E 1975, 135ESL74B 1974, 135ESL75E 1975, 135ETL74B 1974, 135ETL75E 1975, 990206F 1973, 990206S 1973, 990207F 1973, 990207FF 1974, 990207R 1974, 990207R1 1974, 990207S 1973, 990210F 1973, 990210R 1974, 990210R1 1974, 990210R2 1975, 990210S 1973, 990211A 1975, 990211A1 1975, 990211A11 1976, 990211F 1973, 990211M 1976, 990211R 1974, 990211R1 1974, 990211R11 1975, 990211S 1973, 990212A 1975, 990212F 1973, 990212R 1974, 990212R1 1974, 990212S 1973, 990215F 1973, 990215FF 1974, 990215R 1974, 990215R1 1974, 990215S 1973, 990216F 1973, 990216FF 1974, 990216R 1974, 990216R1 1974, 990216S 1973, 990217F 1973, 990217FF 1974, 990217R 1974, 990217R1 1974, 990217S 1973, 990218F 1973, 990218R 1974, 990218R1 1974, 990218R2 1975, 990218S 1973, 990220R 1974, 990220R2 1975, 990221R 1974, 990223A 1975, 990223A1 1975, 990223A11 1976, 990224A 1975, 990224A1 1975, 990224A11 1976, 990225A 1975, 990225A1 1975, 990225A11 1976, 990226A 1975, 990226A1 1975, 990226A11 1976, 990227A 1975, 990227A1 1975, 990227A11 1976, 990228A 1975, 990228A1 1975, 990228A11 1976, 990229A 1975, 990229A1 1975, 990229A11 1976, 990229E 1977, 990229G 1977, 990229M 1976, 990230A 1975, 990230A11 1976, 990230E 1977, 990230G 1977, 990230M 1976, 990231A 1975, 990231A1 1975, 990231A11 1976, 990231E 1977, 990231G 1977, 990231M 1976, 990232A 1975, 990232A11 1976, 990232E 1977, 990232G 1977, 990232M 1976, 990234E 1977, 990234E1 1977, 990234M 1976, 990235E 1977, 990235E1 1977, 990235M 1976, 990236E 1977, 990236E1 1977, 990236M 1976, 990237E 1977, 990237E1 1977, 990237M 1976, 990239M 1976, 990240A 1975, 990240A11 1976, 990240E 1977, 990240G 1977, 990240M 1976, 990241A 1975, 990241A11 1976, 990241E 1977, 990241G 1977, 990241M 1976, ELECTRICAL 1974, GUFM-10C 1972, GUFM-10S 1972, GUFP-10C 1972, HUFM-21C 1972, HUFM-21S 1972, HUFP-21C 1972, HUTM-21C 1972, HUTM-21S 1972, HUTP-21C 1972, JUFM-10C 1972, JUFM-10S 1972, JX-245 1972, LUFM-10C 1972, LUFM-10S 1972, LUFP-10C 1972, TUFM-21C 1972, TUFM-21S 1972, TUFP-21C 1972, VUFM-10C 1972, VUFM-10S 1972, VUFP-10C 1972, WUFM-10C 1972, WUPM-10C 1972, XUFM-21A 1972, XUFM-21R 1972, XUFP-21A 1972 |
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury/Mariner/Mercruiser | 803822T, F177917 |
| OMC | 0979774, 778021, 979774 |
