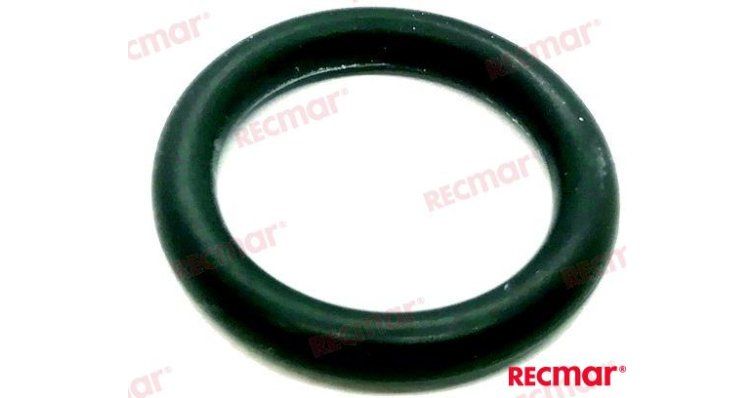

Rubber Ring 129470-01550

Function and technical context

This rubber ring (O-ring) works in the gear housing of the marine diesel engine, acting as a tight seal between joining surfaces to prevent the leakage of fluids—oil or coolant—to the outside or into adjacent circuits. Its function is critical within the transmission sealing system and distribution of mechanical stress: an O-ring in poor condition allows fluids to escape under pressure, contaminating adjacent areas of the engine and causing loss of lubrication or entry of water into sensitive circuits. Each engine requires 2 units of this ring installed in specific positions in the parts (section 4 — Gear Housing, position reference 5), so its replacement must always be carried out in pairs to guarantee a homogeneous seal. The Yanmar manufacturer reference for this part is 129470-01550.

When to replace this part?

The most common symptoms of deterioration of an O-ring in the gear housing are the appearance of oil or moisture stains on the gear cover gaskets, the gradual drop in the oil level without apparent cause and, in advanced cases, the presence of bubbles or foam in the fluid if cross contamination has occurred. It is recommended to inspect these rings at each seasonal maintenance or whenever the gear housing is disassembled for any intervention; Rubber ages with thermal cycles and exposure to fluids, losing elasticity even if the engine has not reached high hours. Preventatively replacing both units when opening the case avoids having to repeat disassembly due to subsequent sealing failure, saving time and labor costs on board.
