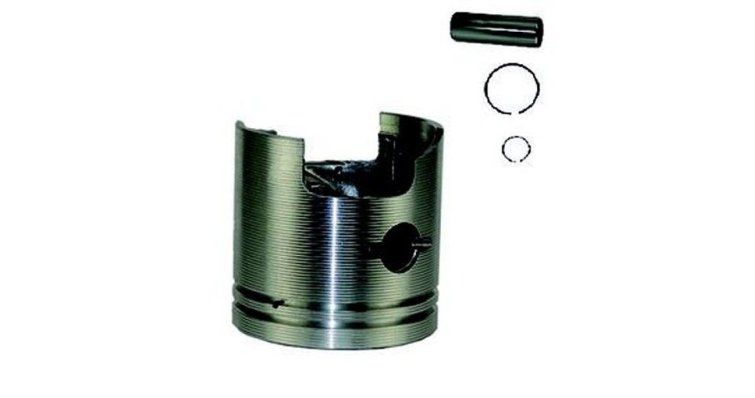

PISTON KIT 12110-93130 REC12110-93130K

Function and technical context

The piston kit is one of the most critical components of the engine assembly in a two-stroke outboard: the piston moves inside the cylinder, transforming combustion energy into rotary movement transmitted to the crankshaft. Forma parte del grupo de distribución y combustión, trabajando bajo condiciones extremas de presión y temperatura en cada ciclo de encendido. A worn or damaged piston causes loss of compression, increased mixture consumption, excessive smoke from the exhaust and, in advanced cases, engine seizure that can completely render the propulsion unit useless. This kit includes the necessary elements for a complete reconstruction of the piston assembly, guaranteeing correct adjustment in the cylinder and recovery of factory compression values.

When to replace this part?

The most common symptoms that indicate the need to renew the piston are: difficulty starting when cold, notable loss of power or irregular acceleration, high consumption of mixing oil and presence of bluish or whitish smoke in the exhaust. In outboard engines with intensive use, it is recommended to inspect the condition of the piston and rings every 300-400 hours of operation or when the compression measurement shows values ​​below those specified by the manufacturer. Replacing the piston kit preventively during a scheduled inspection is considerably more economical than facing a failure due to seizure while sailing.
