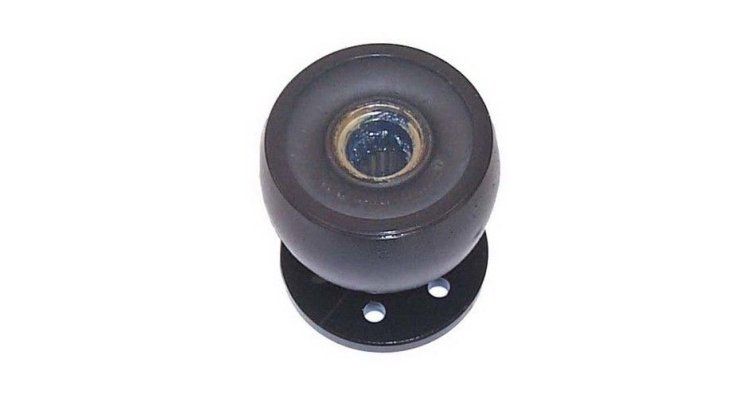

ENGINE COUPLING 69354A2

Function and technical context

The 69354A2 coupling is part of the transmission system of MerCruiser engines, acting as a mechanical connection element between the engine block and the axle line. Its mission is to transmit engine torque to the propeller, absorbing small misalignments and damping torsional vibrations that, if not controlled, would accelerate the wear of the bearings and crankshaft seals. In the 470 and 485 series engines installed in recreational and commercial boats during the seventies and early eighties, this component is decisive in maintaining the integrity of the entire propulsion line: a deteriorated coupling transmits shocks and asymmetrical loads that can damage the gearbox, the propeller shaft and even the structure of the boat in the well area. Its design meets Mercury Marine specifications to guarantee the correct dynamic balance at the normal speeds of these engines.

When to replace this part?

The most common symptoms of a poor coupling are abnormal vibrations noticeable in the hull or controls at certain revolutions, metallic noises or dry knocks when accelerating or decelerating suddenly, and irregular or premature wear of the seals and bearings at the rear end of the engine. In couplings of this type, it is recommended to inspect the condition of the internal rubber and metal contact surfaces at each seasonal inspection or, at most, every 300 hours of operation. Replacing it preventively at the first sign of deterioration avoids much more costly chain failures, especially when sailing far from the port.
