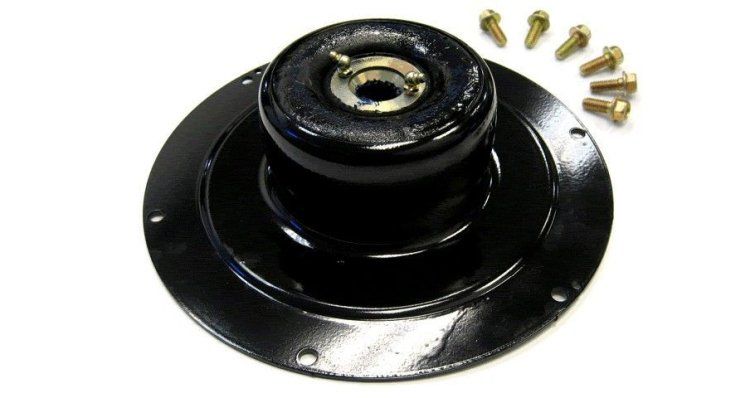

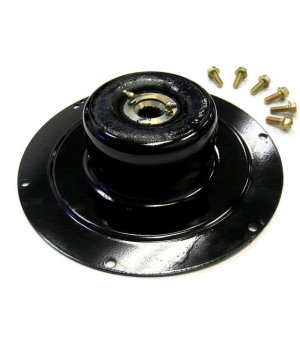

ENGINE COUPLING 5.7 7.4 861523A9 REC861523A9

Function and technical context

The aluminum short hub coupling (part number 861523A9 / REC861523A9, replaced by 8M0098795) forms part of the drive train on MerCruiser stereo propulsion systems, acting as a mechanical link between the engine crankshaft and the stern drive shaft. Its mission is to transmit engine torque precisely and safely, while absorbing torsional vibrations generated during acceleration and full load operation, which protects both the engine and the gears of the outdrive unit. As it is a component made of aluminum with short hub geometry, it offers an optimal relationship between structural resistance and reduction in rotating mass. A deteriorated or loose coupling causes loss of efficiency in power transmission, abnormal vibrations noticeable in the hull, metallic noises when accelerating and, in serious cases, severe damage to the flexible plate, the crankshaft or the transfer case gears.

When to replace this part?

The most common symptoms of a worn or damaged engine coupling include: unusual vibration in the driveline at different speeds, metallic knocking or rattling when applying or releasing gas, and noticeable play when manually turning the shaft with the engine stopped. It is recommended to visually inspect the coupling at each seasonal inspection, paying special attention to cracks, deformations of the aluminum hub, wear on the keyway or splines, and galvanic corrosion; In boats with intensive use, preventive replacement before obvious symptoms appear avoids costly breakdowns in navigation, especially in large displacement engines such as the 5.7L and 7.4L that generate high transmission torques.
