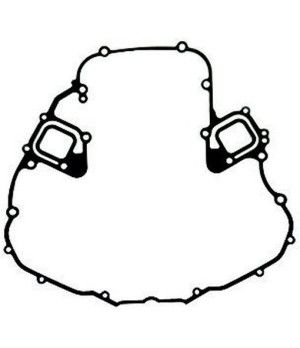

ENGINE BASE GASKET 51211-93J00 REC51211-93J00

Function and Technical Context

The engine base gasket acts as a watertight seal between the engine block and the lower crankcase, preventing lubricating oil from leaking and keeping moisture or contaminants out of the engine’s internal areas. It operates within the outboard motor’s lubrication and structural sealing system, withstanding the vibrations inherent to operation in marine environments. Its integrity is essential for maintaining proper oil pressure and preventing severe damage to the engine’s internal components; a deteriorated gasket can cause lubricant leaks that lead to engine seizure or accelerated corrosion. Designed specifically for Suzuki DF200, DF225, DF250, DF300AP, and DF300T/Z engines, as well as Johnson/Evinrude J/BJ200 and J/BJ225 units, it ensures a precise fit in accordance with the manufacturer’s specifications.

When should this part be replaced?

The most common symptoms of a worn-out base gasket are the appearance of oil stains or streaks on the bottom of the block, a burning smell from oil dripping onto hot surfaces, or a gradual drop in the lubricant level for no apparent reason. It is recommended to inspect this gasket during every seasonal maintenance check or whenever the engine is disassembled for internal inspection, as the sealing material can harden and lose elasticity over time and due to thermal cycles. Replacing it as a preventive measure when performing any work on the engine block prevents serious breakdowns while underway and costly repairs.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer Part Numbers
