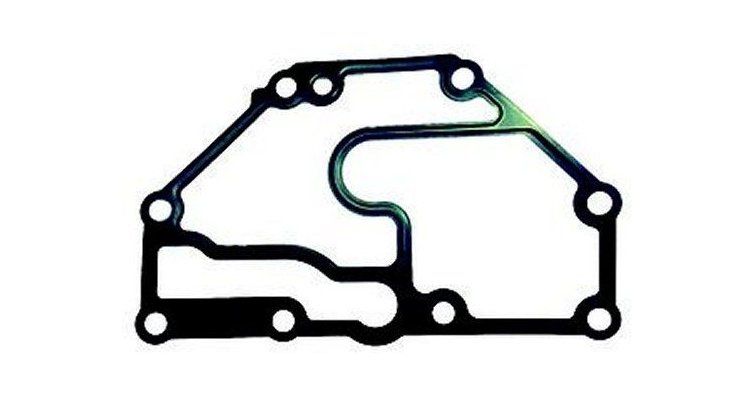

Base Gasket 51142-93J00

Function and Technical Context

The base gasket acts as a watertight seal between the engine block and the cover or lower crankcase, preventing the leakage of fluids—coolant, oil, or combustion gases—at the joint between both metal surfaces. It operates within the structural sealing system of the outboard propulsion unit, withstanding continuous cycles of pressure and temperature inherent to marine operation. Its integrity is fundamental to maintaining correct internal pressure and preventing cross-contamination between circuits; failure of this component can result in loss of cooling, water ingress into the crankcase, or loss of oil pressure, with the consequent risk of severe engine damage. This gasket is specifically designed for high-power Suzuki outboard propulsion units of the DF series and for Johnson/Evinrude marine engines in the 200-225 HP range, guaranteeing the exact dimensional fit required by each application.

When to Replace This Component?

The most frequent signs of deterioration in a base gasket are the appearance of oil or coolant stains in the engine body joint area, progressive loss of fluid level without visible external leakage, or the presence of whitish emulsion in the oil that reveals mixing with water. It is recommended to visually inspect this seal at each seasonal maintenance interval and replace it whenever the cylinder head or lower crankcase is removed, as the gasket material loses its elastic recovery capability after each torque application. Replacing it preventively during any intervention at the engine base avoids more costly breakdowns during navigation and extends the service life of the assembly.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
