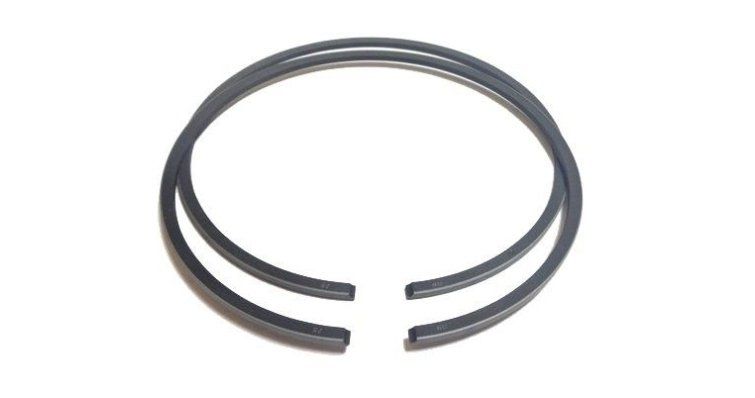

PISTON SEGMENT RING KIT STD 39-80422M

Function and technical context

Piston rings are essential components of the marine engine compression system, responsible for hermetically sealing the combustion chamber between the piston and cylinder walls. This sealing is critical to maintain the necessary pressure during the compression and delivery stroke, allowing the engine to develop the required power. The wear or breakage of these rings directly compromises the compression of the cylinder, causing loss of power, increased fuel consumption and entry of combustion gases into the crankcase. In marine engines subjected to continuous and demanding operation, these components suffer accelerated wear due to variations in temperature and pressure.

When to replace this part?

Replacing the piston rings is necessary when a significant loss of compression in one or more cylinders, progressive loss of engine power, abnormal increase in blue smoke in the exhaust or excessive consumption of lubrication oil is detected. These components should be checked during any cylinder disassembly and replaced preventively in major engine overhauls, especially after 500-800 hours of intense operation or when cylinder grinding is performed. Replacing the rings preventively during planned maintenance avoids unforeseen breakdowns in navigation and costly secondary damage to cylinders and pistons.

Engine Compatibility

Mercury/MerCruiser

Equivalent manufacturer part numbers
