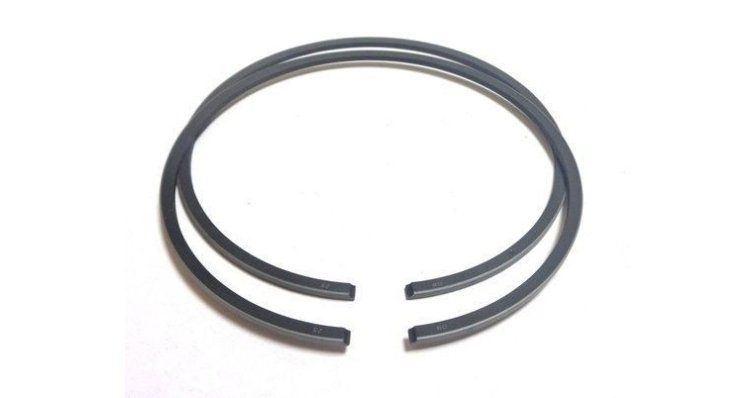

YAMAHA PISTON RING KIT 39-14197M

Function and technical context

Piston rings are essential components of the combustion system that act as dynamic seals between the explosion chamber and engine oil pan. During operation, these rings slide continuously within the cylinder, guiding the piston in its vertical reciprocating movement while maintaining an airtight seal that allows the correct compression of the air-fuel mixture. Their function is twofold: on the one hand, they prevent the combustion gases from escaping into the crankcase (maintaining the compression pressure necessary for ignition), and on the other hand, they control the amount of lubricant that reaches the explosion chamber, preventing the engine oil from penetrating in an uncontrolled manner. When the rings wear or break, the loss of compression is immediate, causing a drastic decrease in power, abnormal oil consumption and the emission of blue smoke from the exhaust.

When to replace this part?

The wear of the piston rings is gradual and progressive, so symptoms include excessive oil consumption, visible loss of power when cruising, presence of gases in the crankcase (evidenced by oil leaks in the ventilation pipe) and persistent blue smoke in the exhaust, even in normal operation. Unlike components with fixed intervals, the replacement of these rings depends on the accumulated hours of operation and the operating conditions of the engine, so it is recommended to inspect the piston-cylinder group at each annual maintenance check and replace the rings preventively when visible wear is detected or during any intervention inside the cylinder. Replacing rings preventatively during an engine repair avoids costly subsequent work and ensures optimal propeller performance throughout the upcoming boating season.

Equivalent manufacturer part numbers
