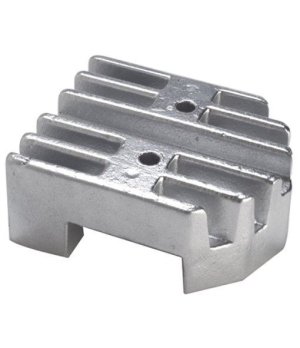

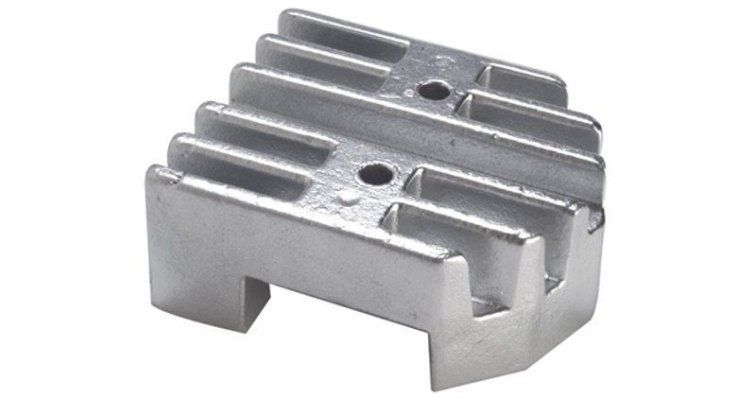

MERCURY TRANSOM ANODE 43994

Function and technical context

The transom anode is a critical cathodic protection component on Mercury, Mariner outboard motors, and MerCruiser propulsion systems. Made of high purity aluminum, it acts as a controlled sacrifice to prevent galvanic corrosion that occurs when different metals come into contact in a saline environment. This anode is mounted in the transom (transom) area, an area constantly exposed to seawater, and gradually dissolves in place of the base metal of the engine, preventing severe oxidation on the aluminum structure of the engine block and critical internal components.

When to replace this part?

The transom anode should be inspected at the beginning of each boating season and replaced when it shows visible wear greater than 50% of its mass or when it shows signs of accelerated erosion. The degradation of the anode is the indicator that it is fulfilling its defensive function; A completely consumed anode means that the motor has been unprotected during the last days of navigation. Preventive replacement is recommended each season on boats with intense saltwater use to ensure continuous protection, avoiding internal galvanic corrosion that results in extremely costly repairs and loss of engine power at sea.

Equivalent manufacturer part numbers
