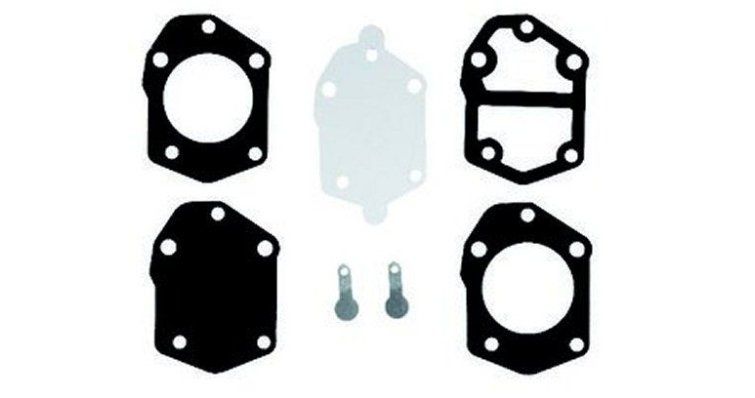

MEMBRANE KIT 15170-94320

Function and technical context

This membrane kit is part of the fuel supply system in two-stroke Suzuki outboard engines, acting within the diaphragm pump that drives the fuel from the tank to the carburetor. The membranes are the flexible elements that, through pressure and vacuum cycles generated by the engine crankcase, create the pumping effect necessary to guarantee a constant and stable supply of fuel. When these diaphragms deteriorate, fuel flow is compromised, causing idling problems, acceleration jerks or even unexpected engine stoppage while sailing. Keeping these membranes in good condition is, therefore, essential for the correct functioning of the entire feeding system.

When to replace this part?

The most common symptoms of fuel pump membrane wear include difficulty starting when cold, progressive loss of power, irregular operation at low rpm or fuel with air bubbles in the supply circuit. In outboard engines that work in intense seasons, it is recommended to check the membranes during each seasonal maintenance and replace them preventively if there is any sign of rigidity, cracking or deformation of the material. Changing the membrane kit before the diaphragm fails completely avoids unforeseen breakdowns at sea and possible damage to the carburetor due to poor fuel supply.
